Motor, Drain Tube and Frame Replacement



CAUTION: Be careful not to damage the seats, dash-ward and other interior trim.

1. Remove the glass and headliner
2. Disconnect the motor connector, and remove the clips securing the ceiling light wire harness.

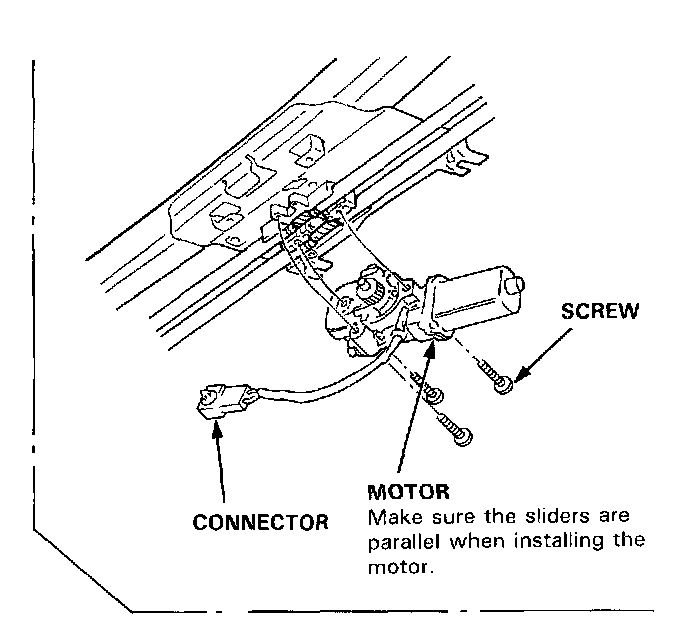

NOTE: To remove the motor, remove the screws.

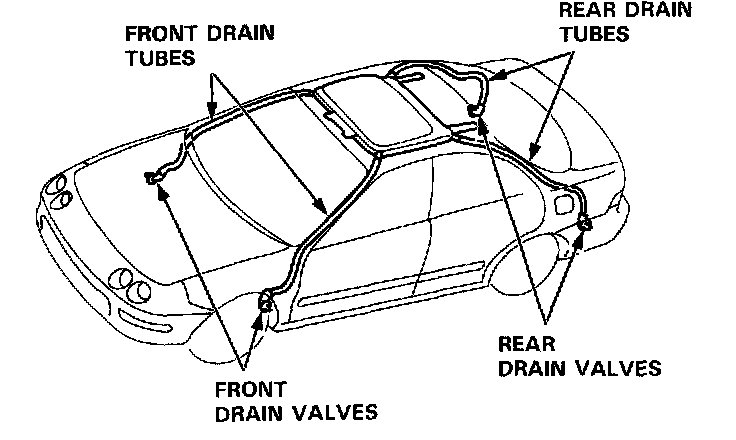

3. Disconnect the drain tubes.

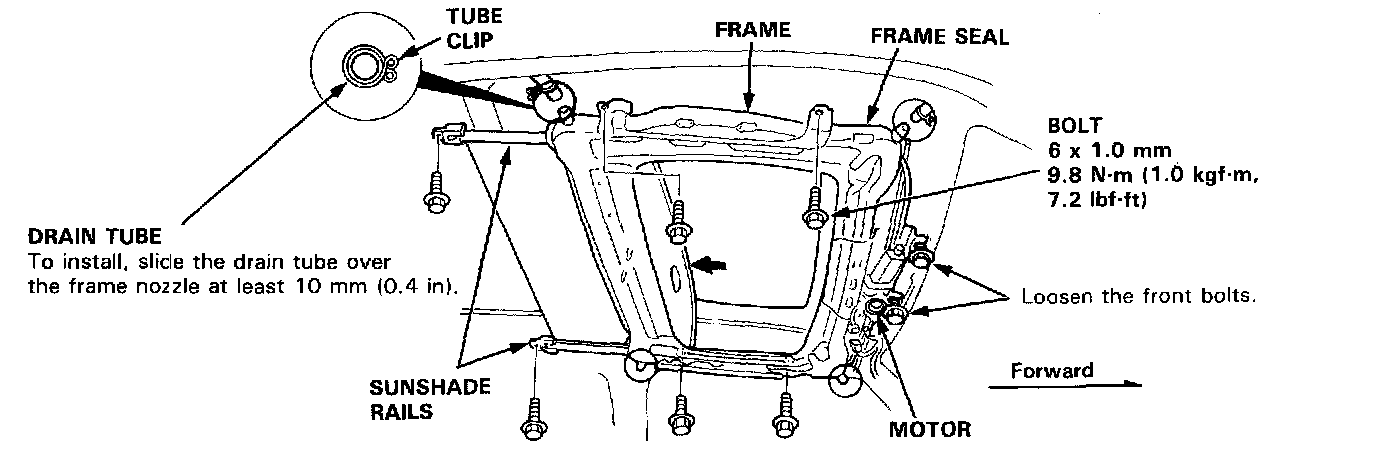

4. Loosen the front bolts.










5. Remove the bolts, then remove the frame from the car.

NOTE:
- You may require assistance when removing the frame.
- Take care not to bend the sunshade rails.

6. Pull the drain tubes out of the front and rear pillars.

NOTE: Before pulling out the drain tube, tie a string to the end of it so it can be reinstalled.

7. Installation is the reverse of the removal procedure.

NOTE:
- Install the tube clips with the ends facing the side to ease installation of the headliner.
- Clean the surface of the frame.
- Check the frame seal.
- Check for water leaks.
- Make sure the sunshade moves smoothly.
