Hatchback

Motor, Drain Tube and Frame Replacement

CAUTION: Be careful not to damage the seats, dashboard and other interior trim.

1. Remove the glass and headliner.

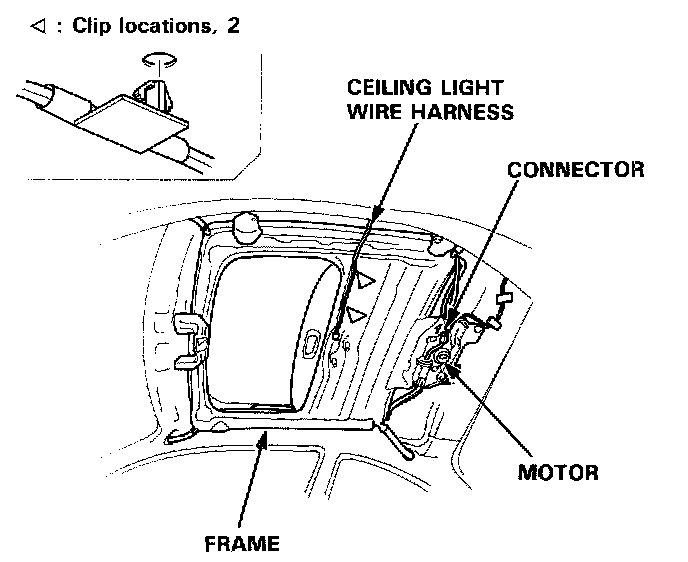

2. Disconnect the motor connector, and remove the clips securing the ceiling light wire harness.

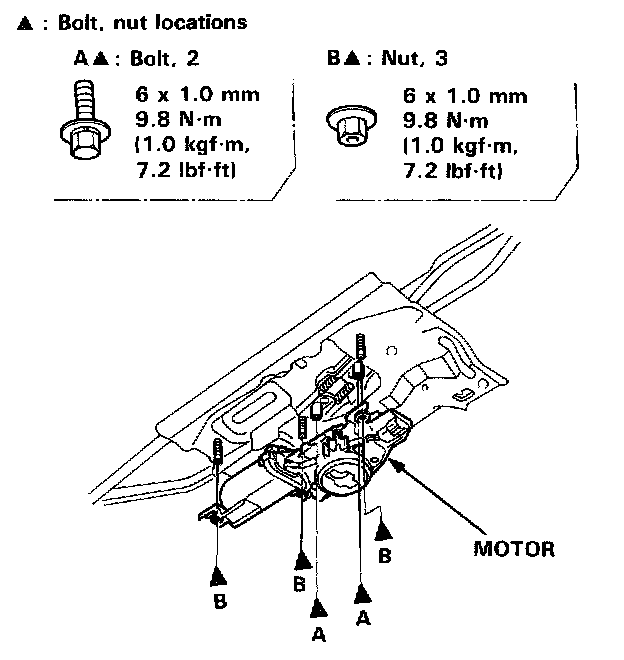

3. Remove the bolts and nuts, then remove the motor, if necessary.

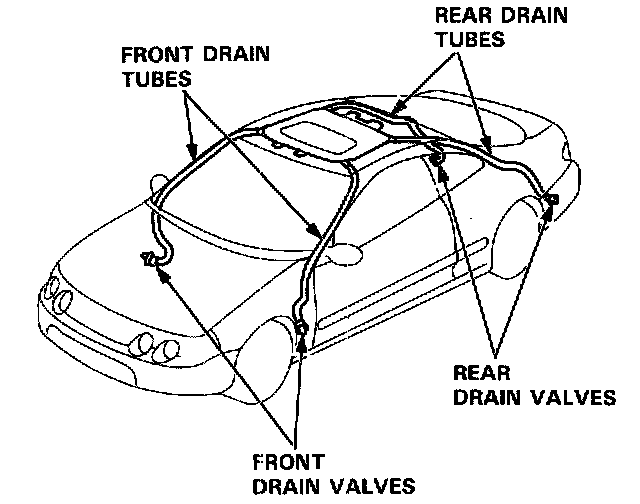

4. Disconnect the drain tubes.

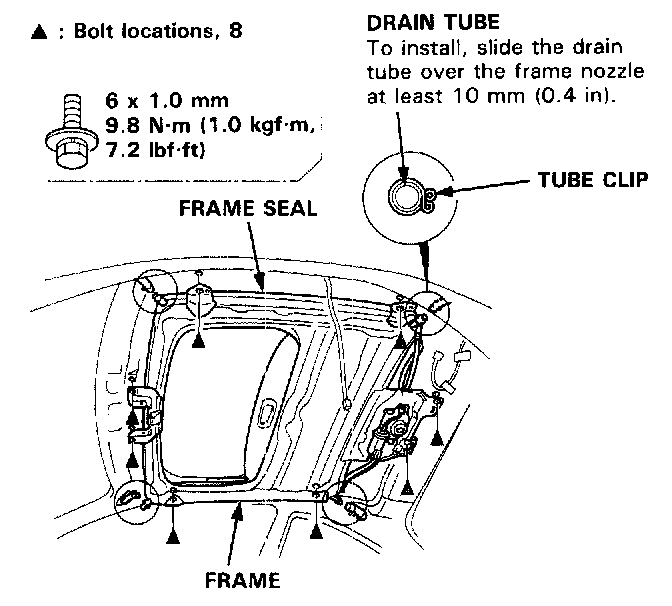

5. Remove the bolts, then remove the frame from the car.






NOTE: You may require assistance when removing the frame.

6. Pull the drain tubes out the front and rear pillars.






NOTE: Before pulling out the drain tube, tie a string to the end of it so it can be reinstalled.

7. Installation is the reverse of the removal procedure.

NOTE:
- Clean the surface of the frame.
- Check the frame seal.
- Check for water leaks.
