Glass Bracket/Slider, Lifter, Guide Rails and Cable Assembly Replacement1. Remove the frame.

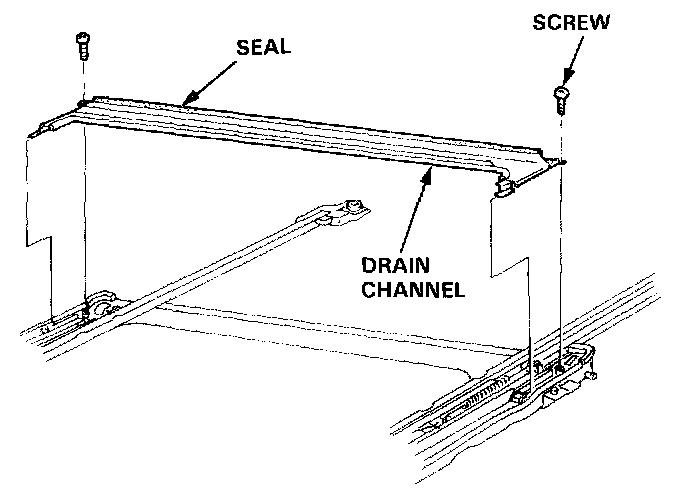

2. Remove the drain channel.
NOTE: Take care not to damage, twist or lift the seal.

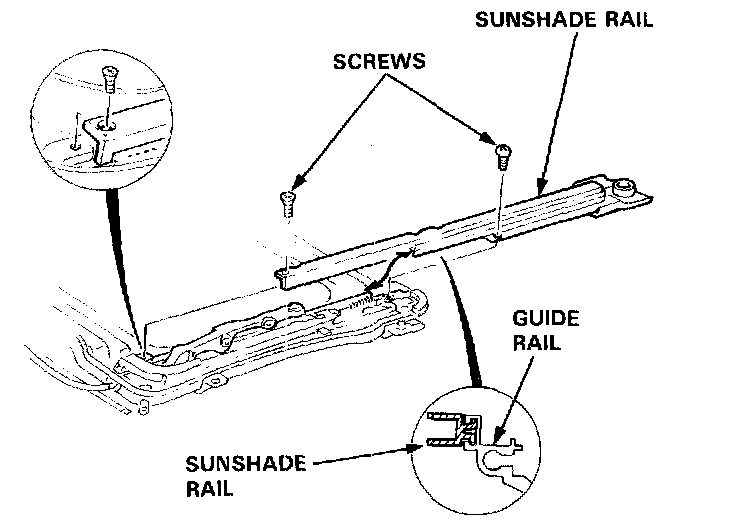

3. Remove the screws, then remove the sunshade rail by sliding it backward.
4. Remove the motor.
5. Remove the front drain channel.
6. Remove the nut, then remove the front rail holder.

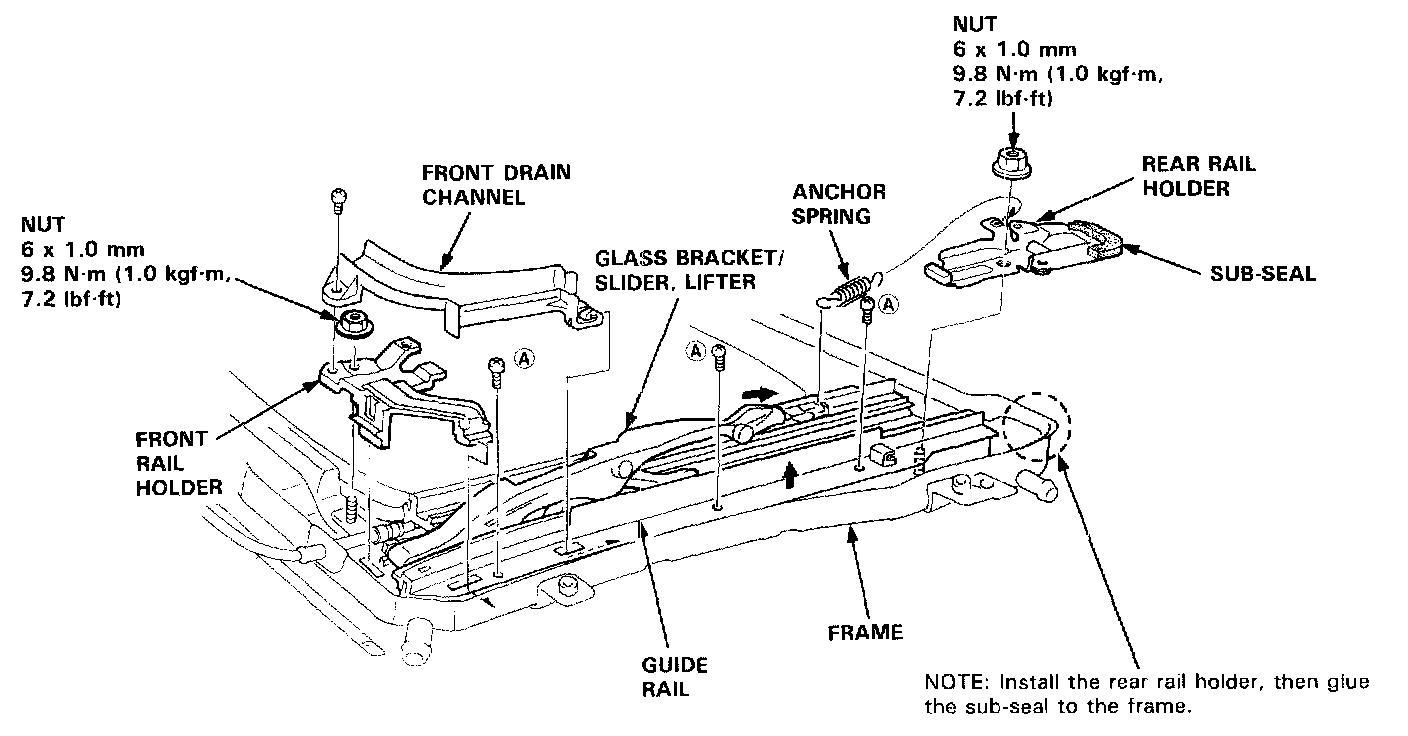

7. Remove the screws (A) attaching the guide rail, then lift the guide rail.
8. Remove the nut, then remove the rear rail holder.
NOTE: Remove the anchor spring.
9. Slide the glass bracket/slider, lifter backward, then remove it.
10. Separate the glass bracket, lifter, slide stopper link and slider.
11. Slide the anchor rod forward, then remove it from the guide rail.

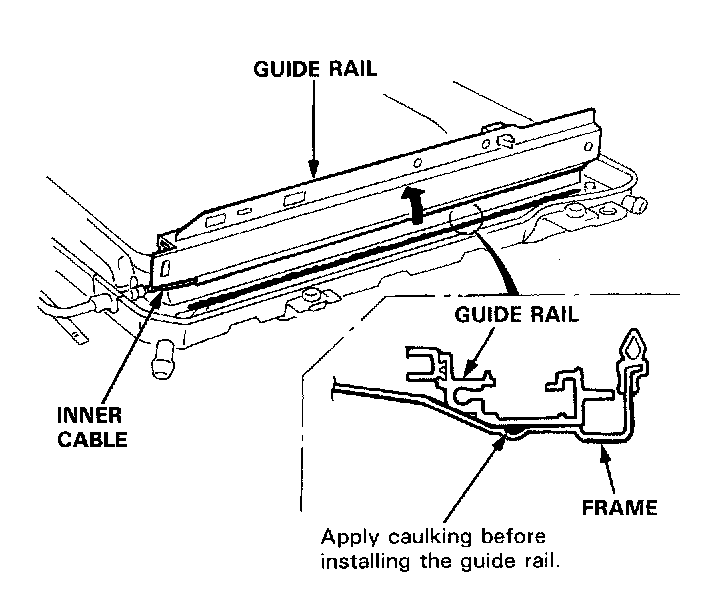

12. Slide the guide rail backward, then remove the guide rail from the inner cable.
NOTE: To install, apply caulking to the guide rail mounting surface on the frame.

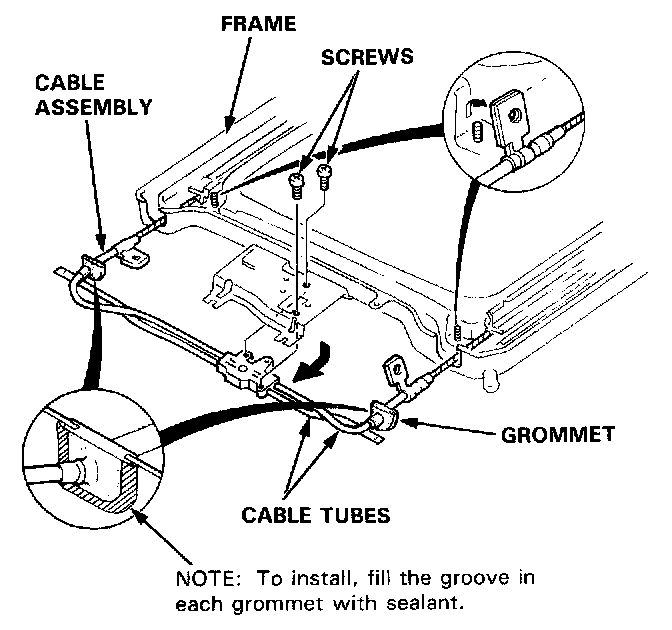

13. Remove the screws, then remove the cable assembly from the frame.
NOTE: Take care not to bend the cable tubes.
14. Installation is the reverse of the removal procedure.
NOTE:
- Damaged parts should be replaced.
- Apply grease to the sliding portion.
