Lower Side Moulding / Trim: Service and Repair

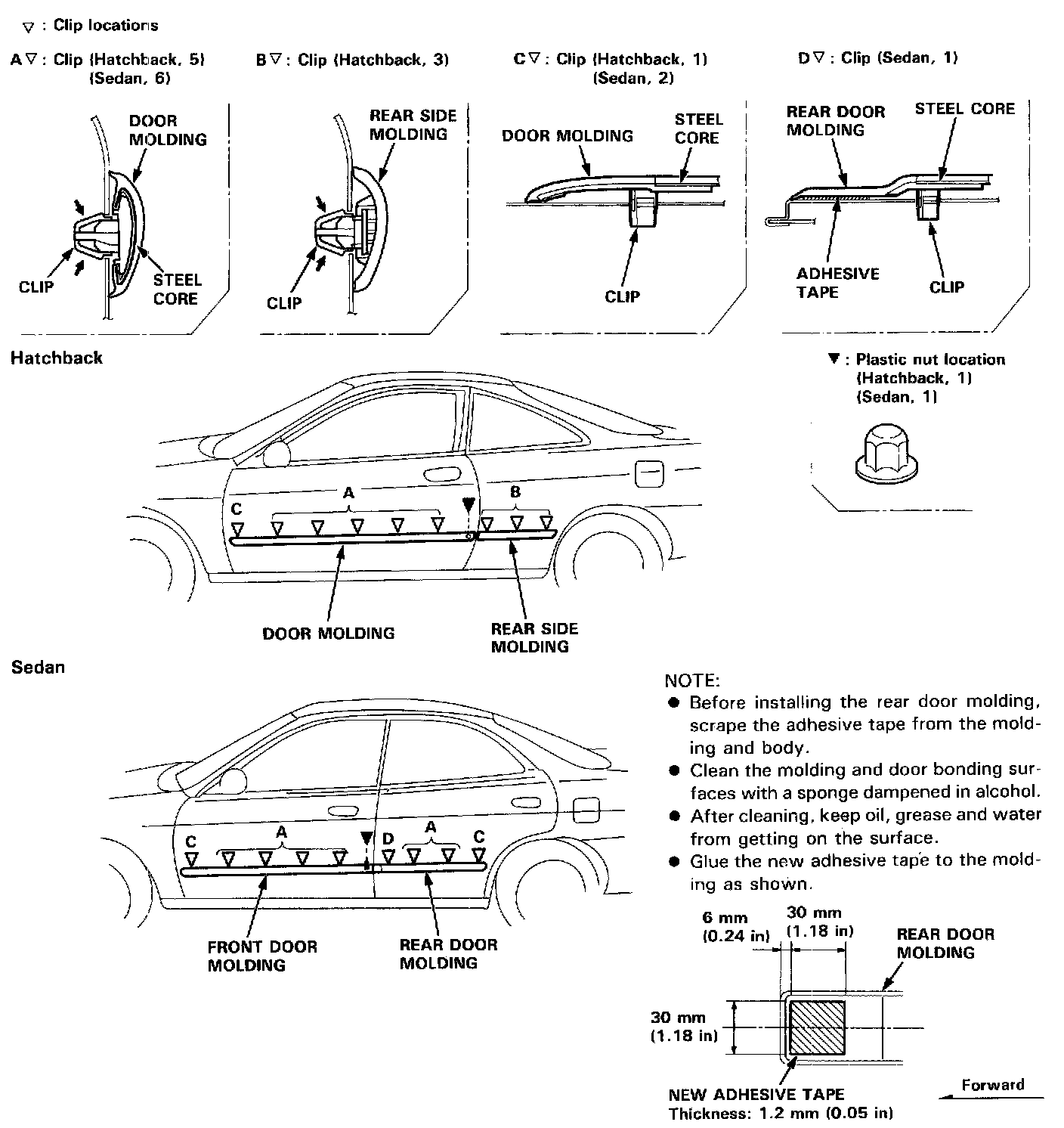

Door and Side Moldings

Replacement






CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape to prevent damage.

NOTE:
- To remove the door molding, remove the door panel and plastic cover.
- To remove the rear side molding, remove the side trim panel.
- Take care not to bend the door moldings.
- The steel core in the door molding cannot be restored to its original shape once it is bent. Replace the door molding if the steel core is bent.

Installation is the reverse of the removal procedure.

NOTE: If recessary, replace any damaged clips.
