Hatchback

Rear Bumper Replacement

CAUTION: Wear gloves to remove and install the rear bumper.

NOTE:
- An assistant is helpful when removing the rear bumper,
- Take care not to scratch the rear bumper and body.

Hatchback:

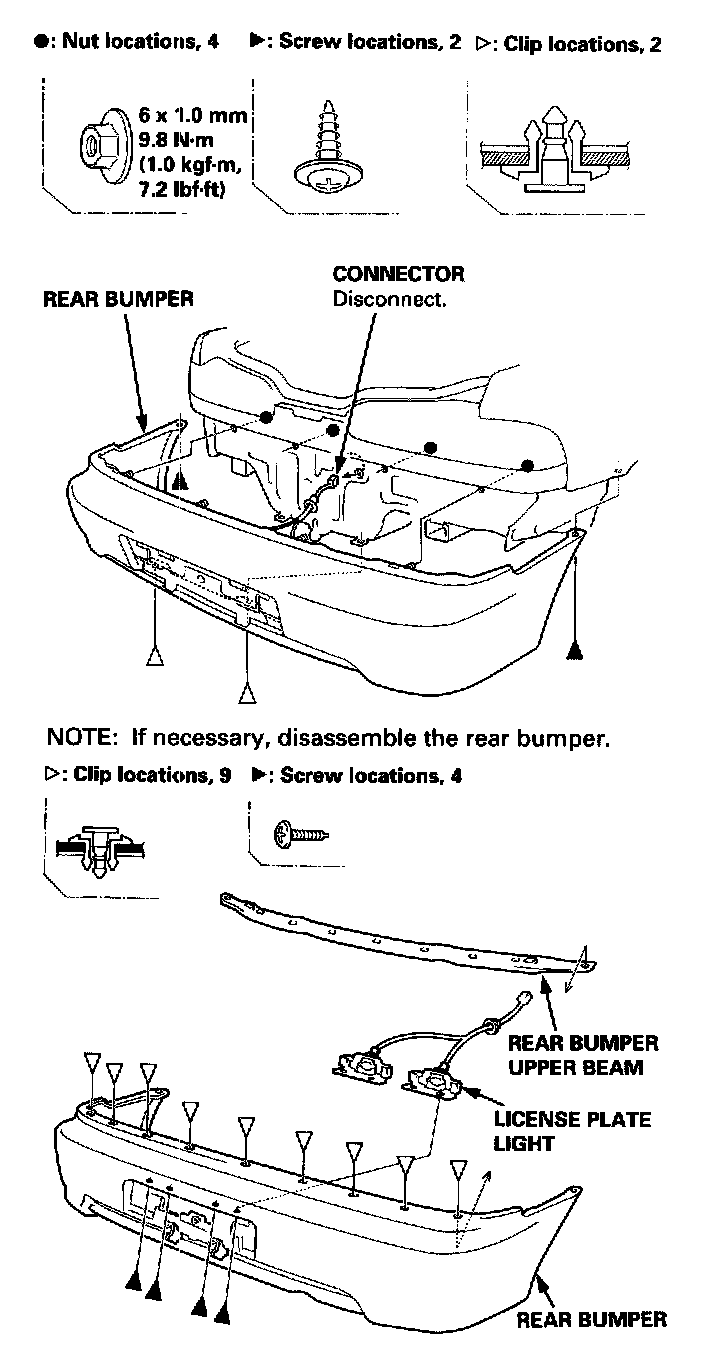

1. Remove the nuts, screws and clips, then remove the rear bumper.

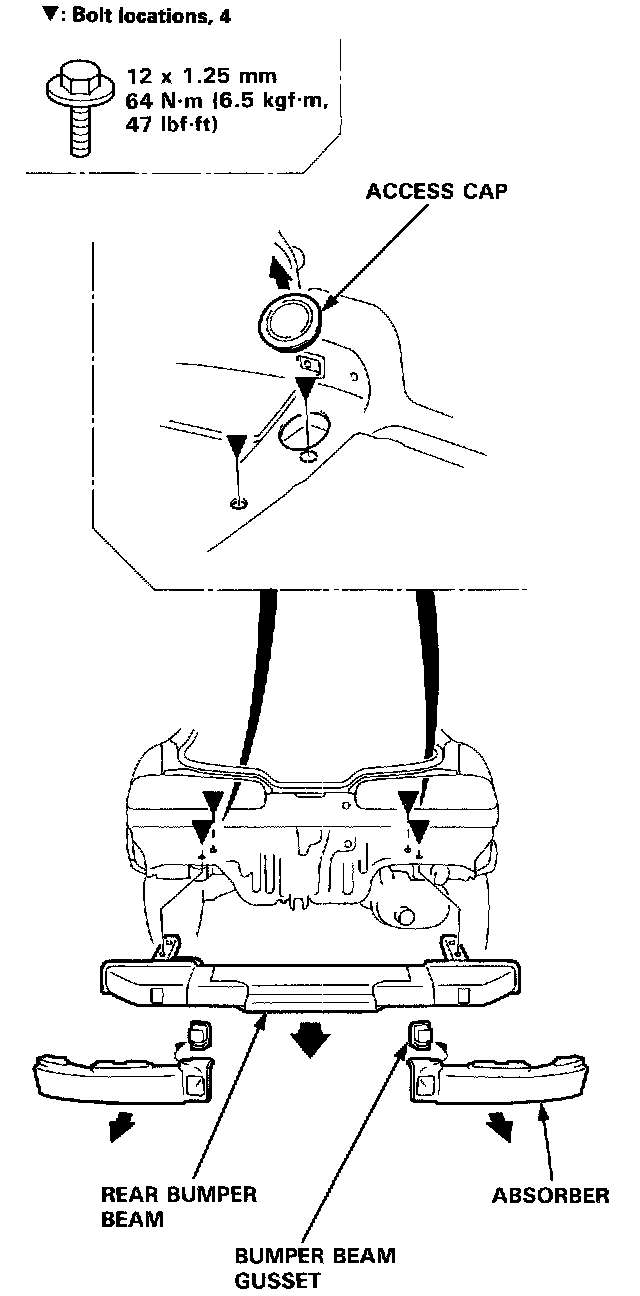

2. Remove the absorber, bumper beam gusset and rear bumper beam.
3. Installation is the reverse of the removal procedure.

NOTE: Make sure the license plate light connector is connected, and the grommet is installed properly.
