Front Speaker/Tweeter Replacement

FRONT SPEAKER - TWEETER / REPLACEMENT

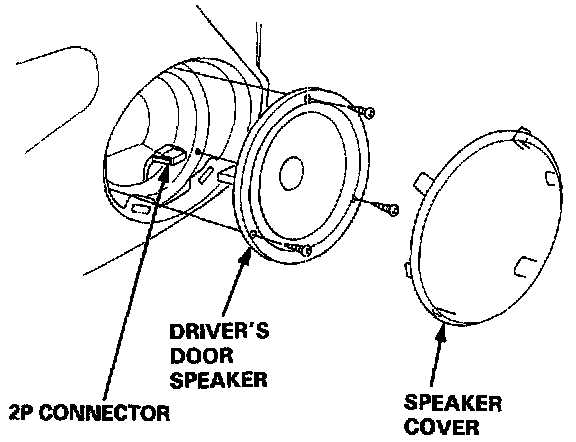

Front Speaker
1. Carefully pry out the speaker cover.







2. Remove the three screws, then disconnect the 2-P connector from the speaker, and remove the speaker.

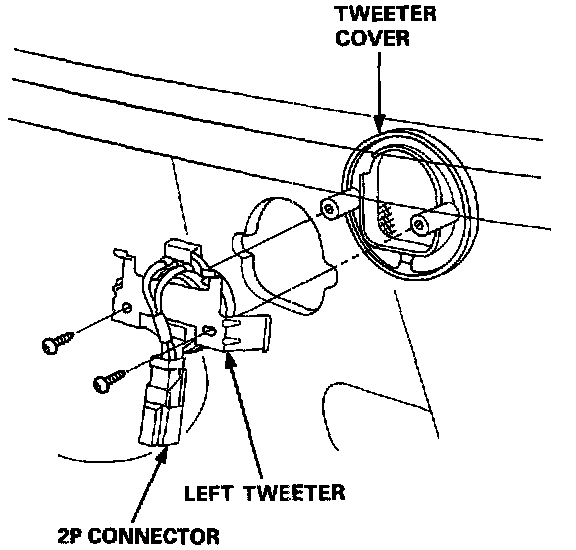

Tweeter
1. Remove the door panel and disconnect the tweeter 2-P connector.







2. Remove the two screws, then remove the tweeter and cover.
