ABS Main Relay: Testing and Inspection

RELAY TEST

Normally-Open Type
1. Remove the power relay from its socket.









ABS Pump Motor Relay






ABS Fail-Safe Relay

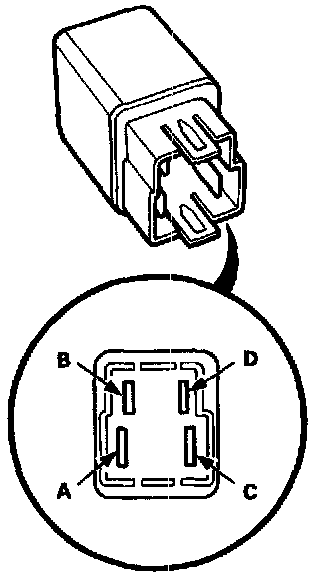

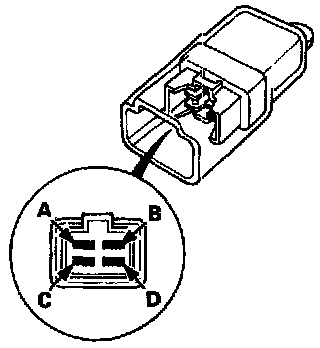

2. Check continuity between relay terminals.
- There should be continuity between the A and C terminals when power and ground are connected to the B and D terminals.
- There should be no continuity when power is disconnected.
