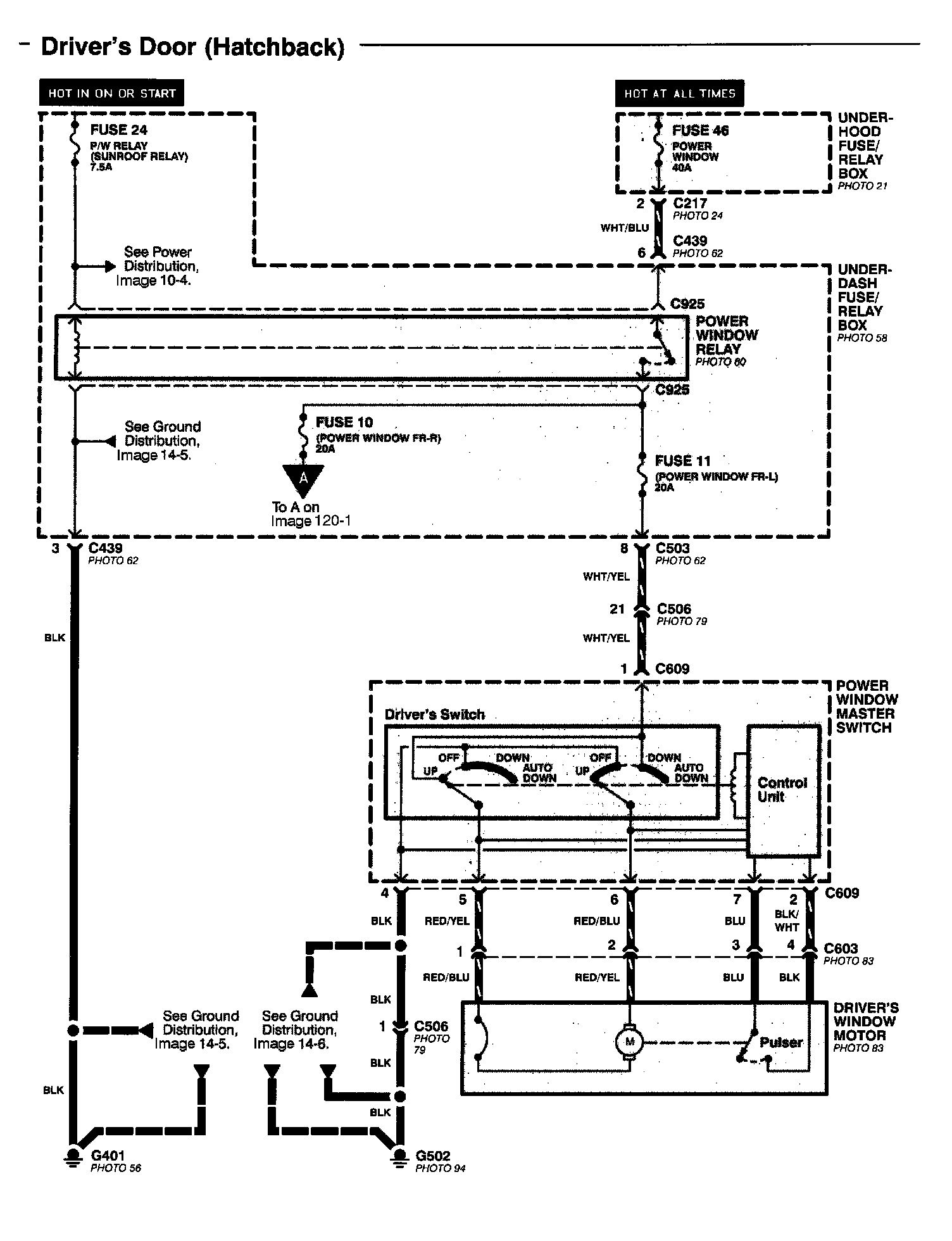

Power Windows Driver's Door (Hatchback) Image 120:

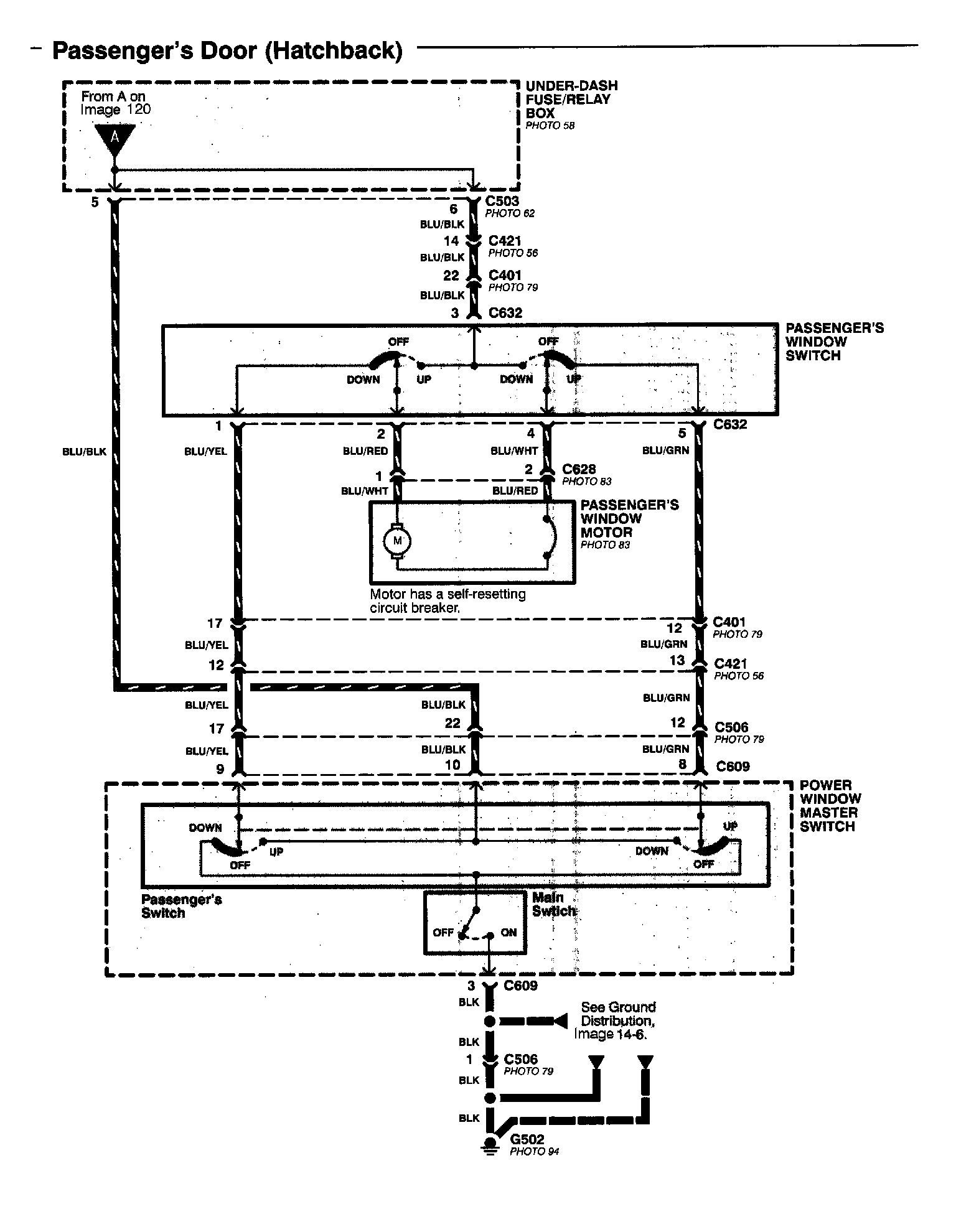

Power Windows Passenger's Door (Hatchback) Image 120-1:
