Console: Service and Repair

Consoles, Front and Rear

Replacement

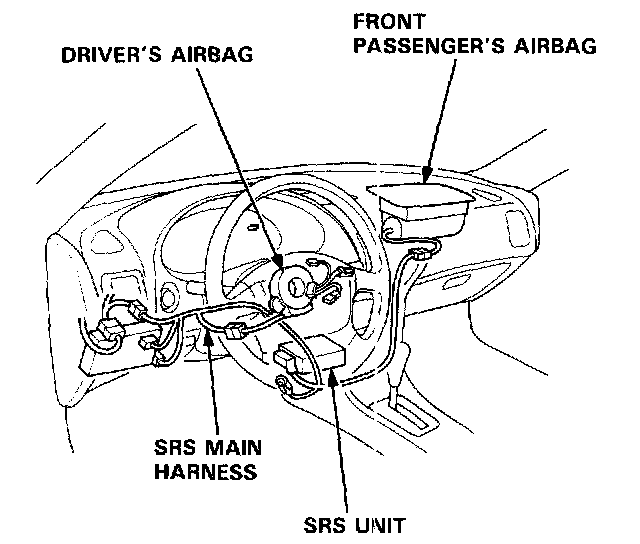

SRS wire harnesses are routed near the front console.






CAUTION:
- All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
- Whenever the ignition switch is ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
- For additional precautions, refer to Restraint Systems.

NOTE: Take care not to scratch the front and rear consoles, and dashboard.

1. Remove the access cap.






CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape to prevent damage.




2. Remove the screws.

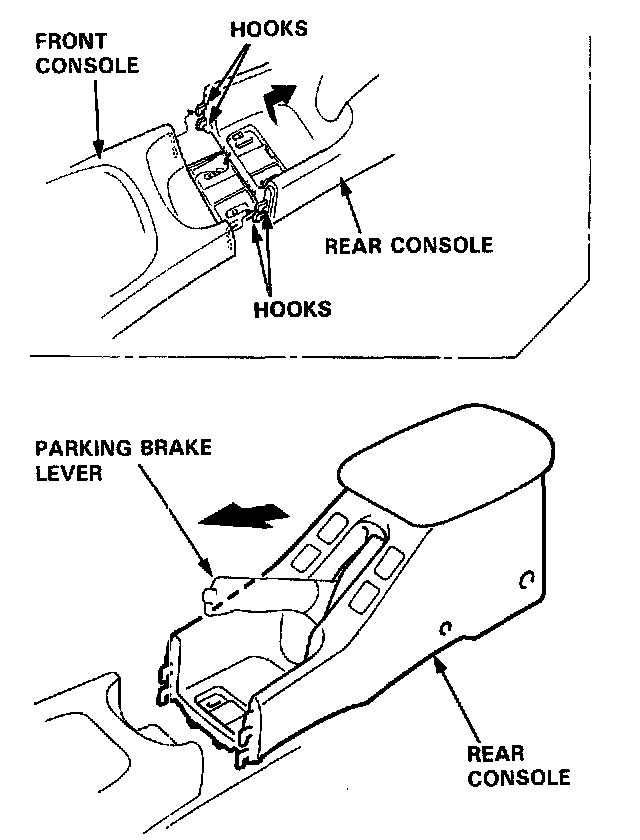

3. Remove the rear console.






NOTE:
- Lift up the parking brake lever.
- Detach the hooks by lifting the front of the rear console and sliding it rearward.

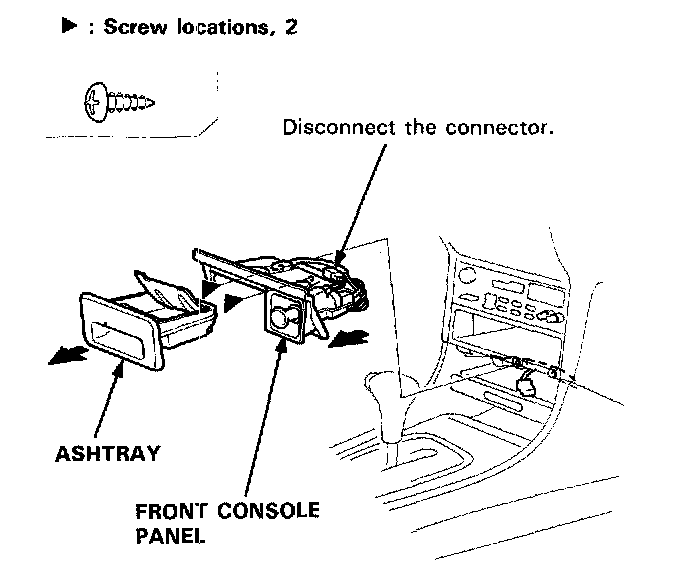

4. Remove the ashtray and front console panel.

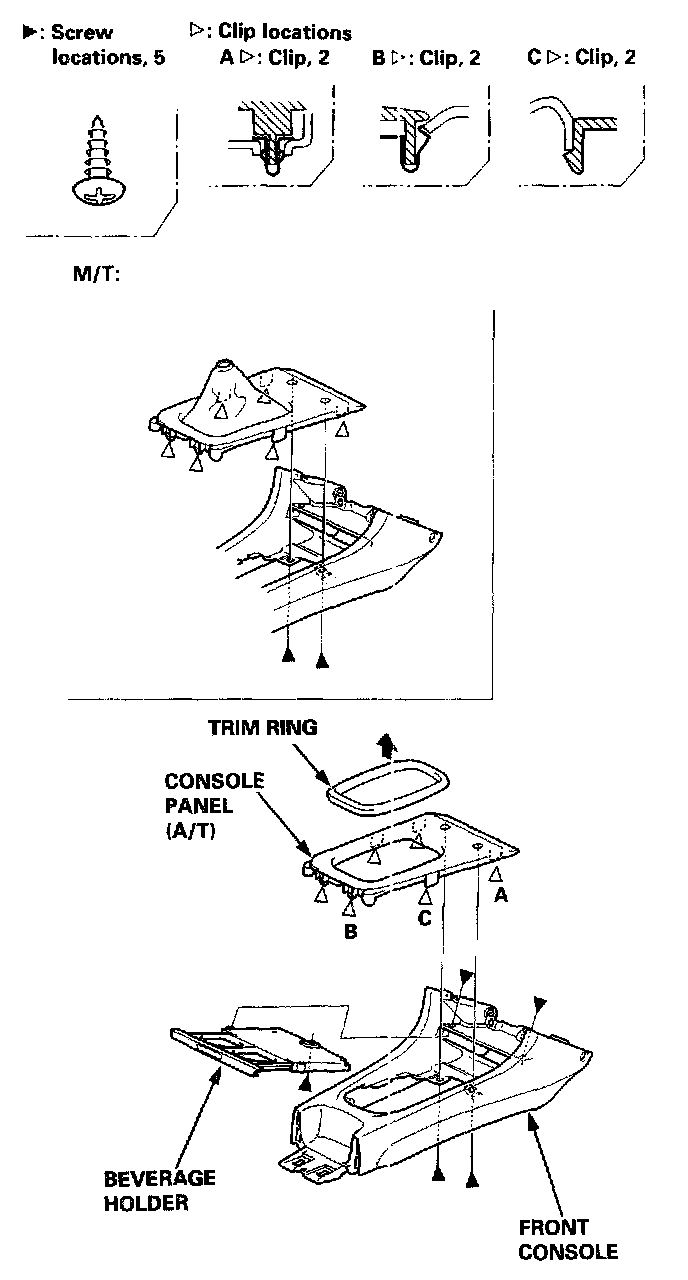

5. Remove the Screws.






NOTE: Remove the shift lever knob (M/T).

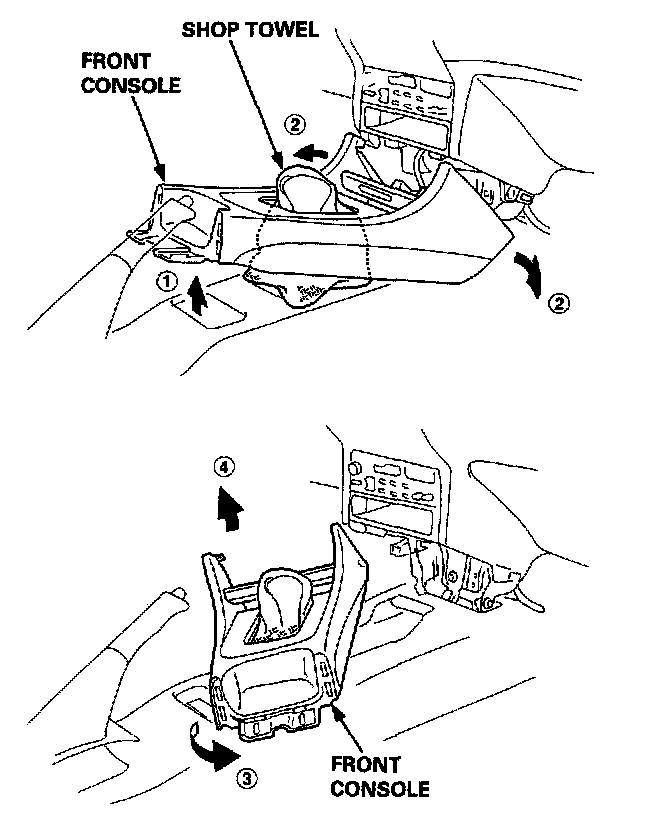

6. Remove the front console as shown.






NOTE: Wrap the shift lever and A/T gear position indicator panel with a shop towel to prevent damage.

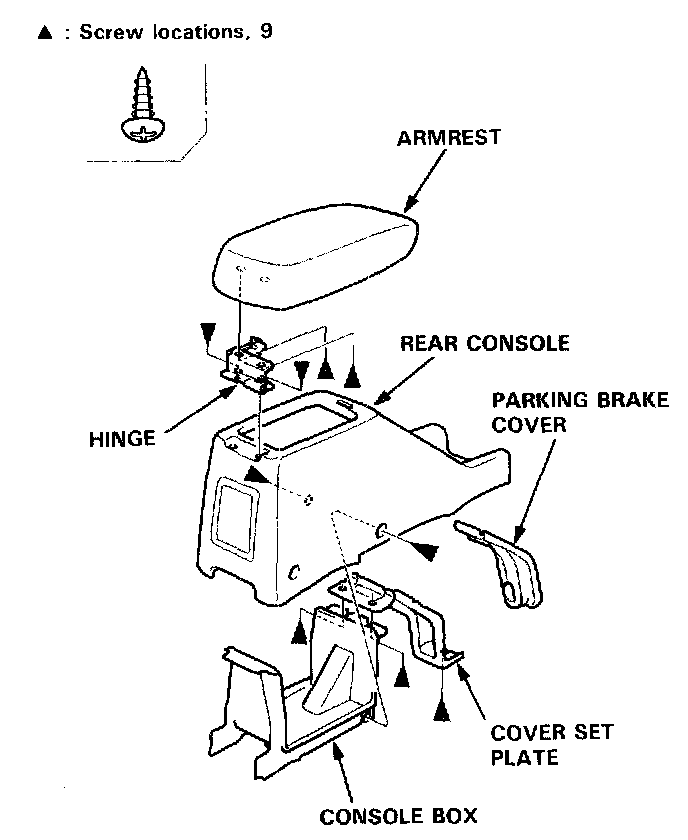

7. If necessary, disassemble the front and rear consoles.
8. Installation is the reverse of the removal procedure.
