Fluid Line/Hose: Service and Repair

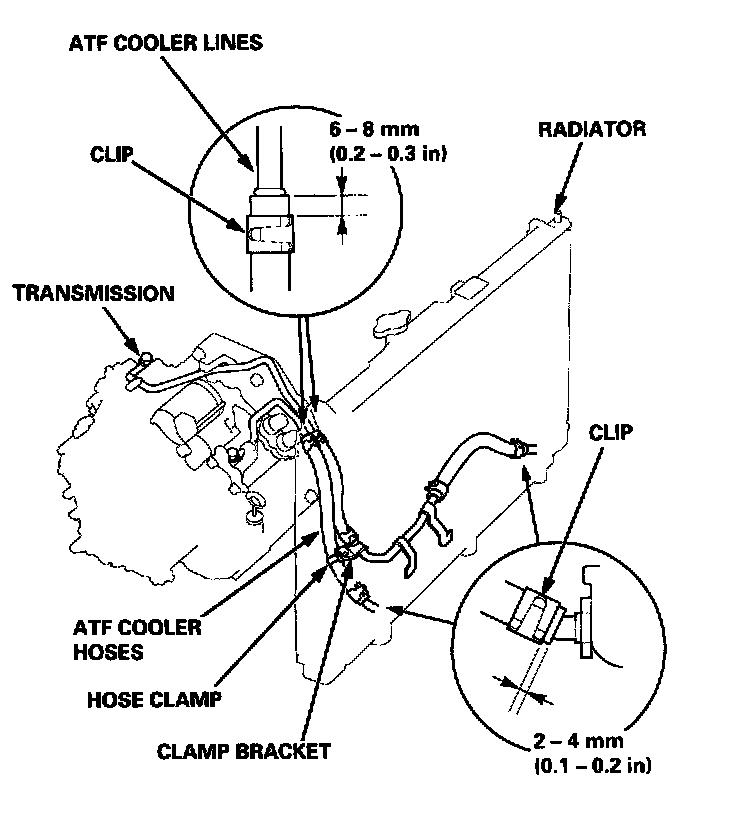

CONNECTION1. Connect the ATF cooler hoses to the ATF cooler lines and ATF cooler, and secure them with the clips as shown.
2. Install the hose clamp on the clamp bracket.
1. Connect the ATF cooler hoses to the ATF cooler lines and ATF cooler, and secure them with the clips as shown.
2. Install the hose clamp on the clamp bracket.
