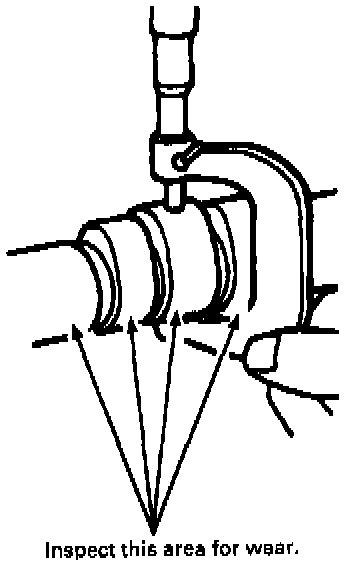

Cam Lobe Height and Uneven Wear

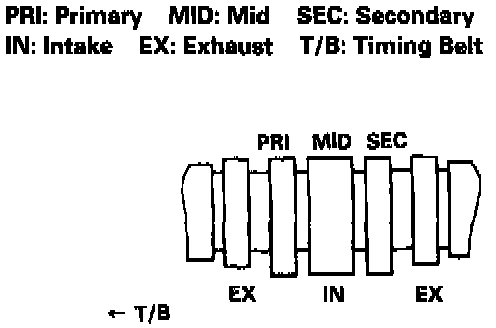

CAM LOBE HEIGHT

Cam Lobe Height Standard (New)
PRI.
Intake: 37.775 mm (1.4872 inch)
Exhaust: 38.366 mm (1.5105 inch)
MID.
Intake: 39.725 mm (1.5640 inch)
Exhaust: 38.366 mm (1.5105 inch)
SEC.
Intake: 34.481 mm (1.3575 inch)
Exhaust: 38.366 mm (1.5105 inch)
