Removal

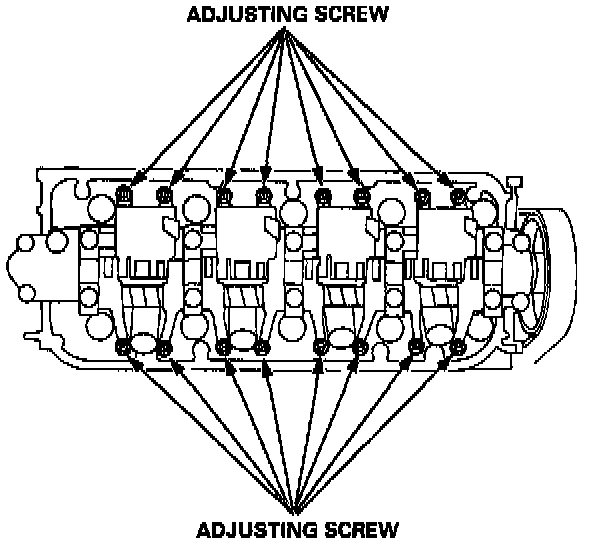

1. Loosen the adjusting screws, then remove the bolts and the rocker arm assembly.

NOTE:
- Unscrew the camshaft bolts two turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
- When removing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the camshaft holders, the springs and the rocker arms on the shafts.

Cam Loosening Sequence:

Camshaft Holder Bolt Loosening Sequence:
