Shifter A/T: Testing and Inspection

1. Remove the center console.

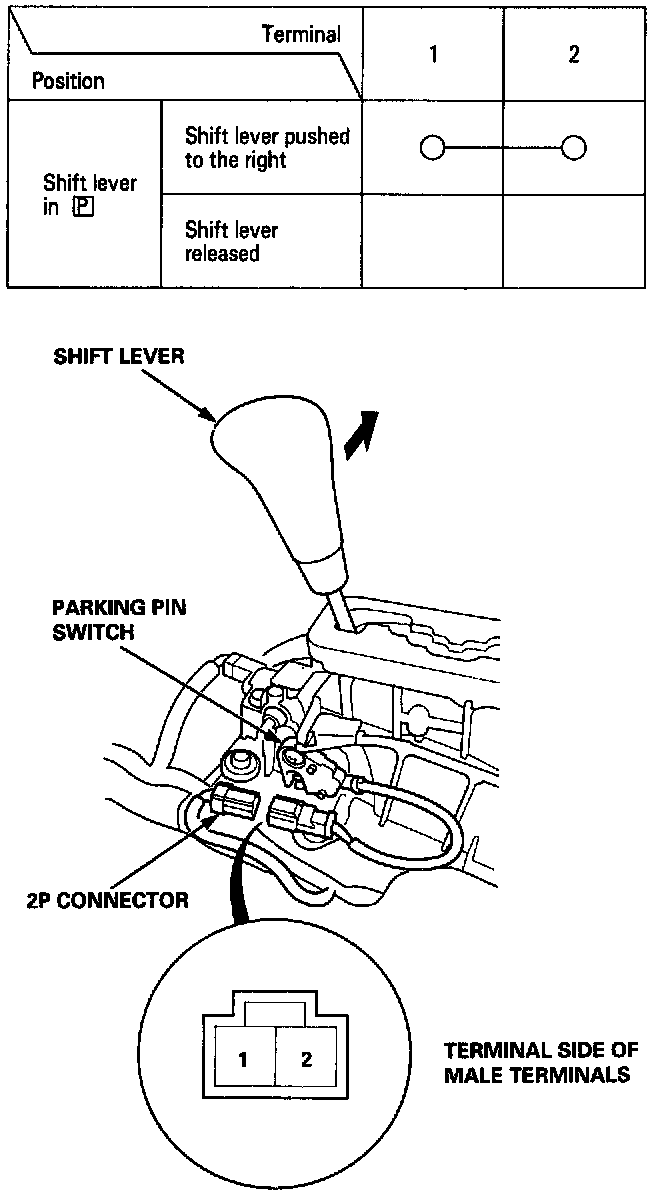

2. Disconnect the parking pin switch 2P connector.

Parking Pin Switch Test/Replacement:

3. Check for continuity between the terminals in each switch lever position according to the table.
4. If necessary, replace the parking pin switch.

Parking Pin Switch Test/Replacement:

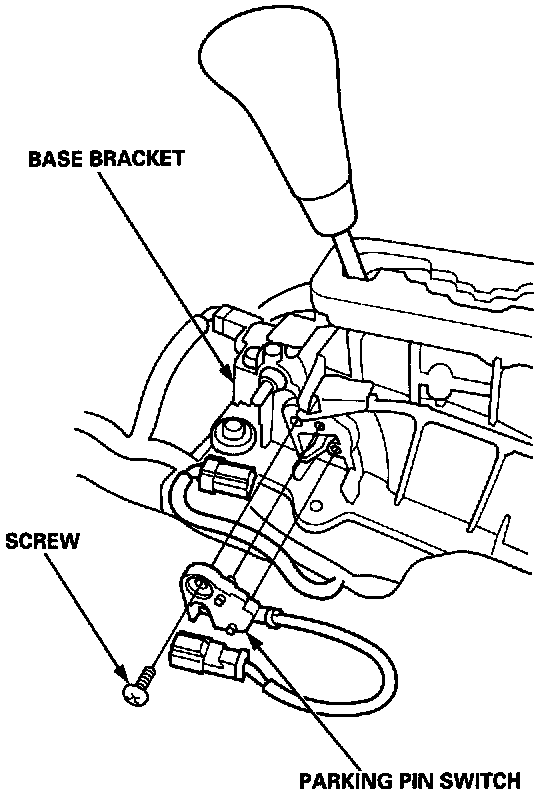

5. Remove the screw, then remove the parking pin switch from the base bracket.
