Shift Solenoid: Service and Repair

NOTE: Shift control solenoid valve A and B must be replaced as an assembly.





REPLACEMENT

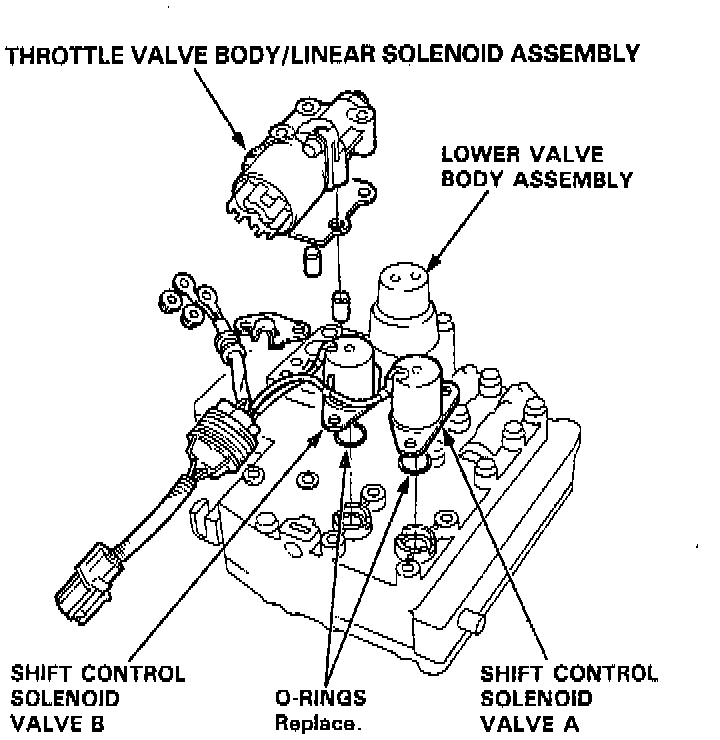

1. Remove the shift control solenoid valve A, B and linear solenoid/throttle valve body from the lower valve body assembly.
2. Disconnect the linear solenoid terminals.
3. Clean the mounting surfaces and fluid passages.

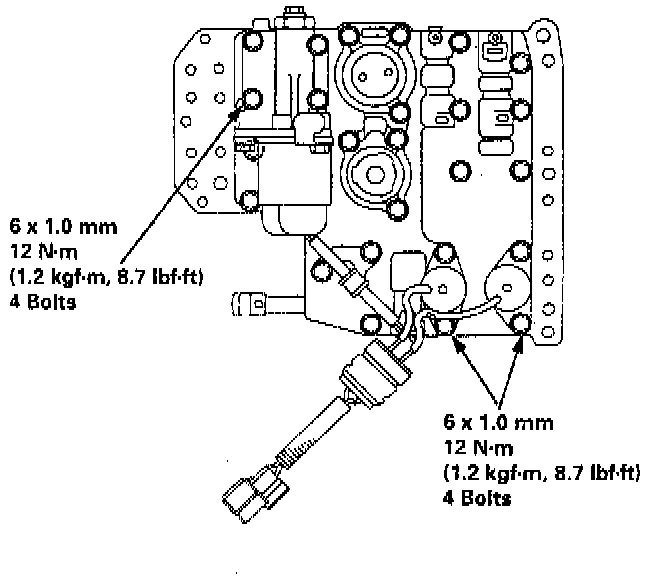

4. Connect the linear solenoid terminal, then install the shift control solenoid valve A, B and linear solenoid/throttle valve body on the lower valve body.
