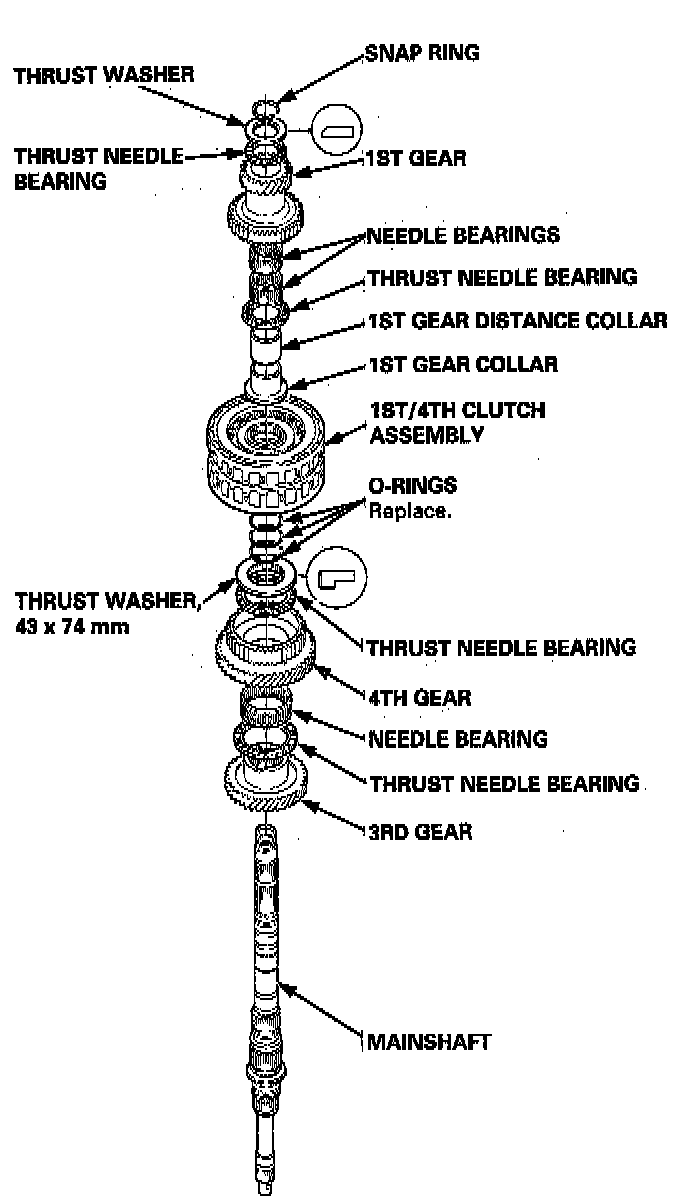

Sub-Assembly Installation
NOTE:
- Lubricate all parts with ATF during assembly.
- Before installing the O-rings, wrap the shaft splines with tape to prevent damage to the O-rings.
- Assemble the mainshaft sub-assembly when assembling the transmission.
