2ND Gear Assembly

TOOLS REQUIRED
- 07746-0010400 Attachment, 52 x 55 mm
- 07GAD-SD40101 Bearing Driver Attachment
- Or Equivalent

BALL BEARING REPLACEMENT

NOTE: Lubricate all parts with ATF during assembly.

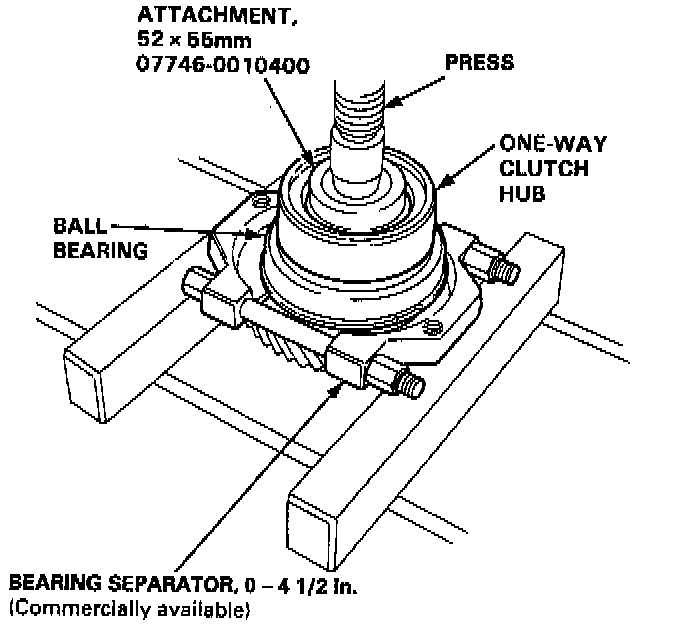

1. Remove the one-way clutch hub and ball bearing from the countershaft 2nd gear using the special tool and a press as shown.

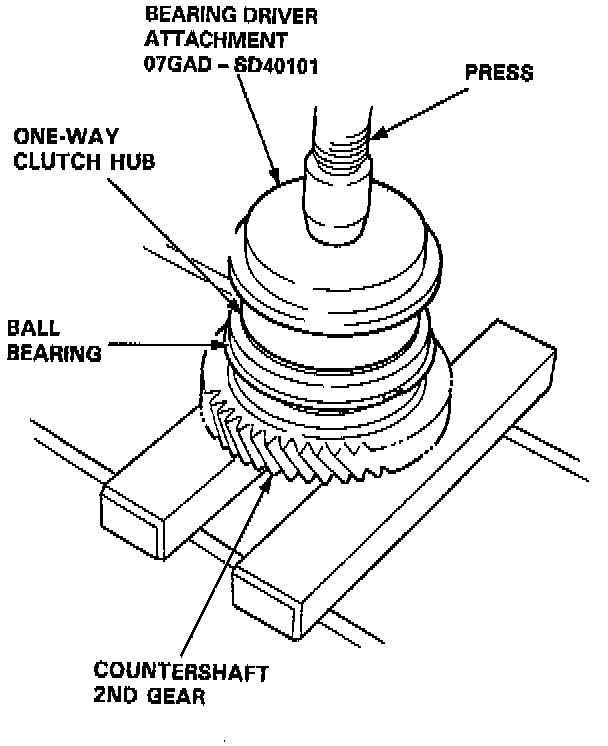

2. Install a new ball bearing and the one-way clutch hub on the countershaft 2nd gear using the special tool and a press as shown.
