Disassemble

TOOLS REQUIRED
- 07LAE-PX40100 Clutch Spring Compressor Attachment
- 07GAE-PG40200 Clutch Spring Compressor Bolt Assembly
- Or Equivalent

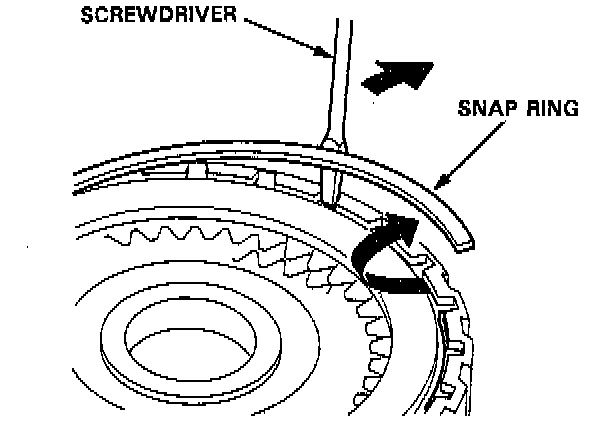

1. Remove the snap ring, then remove the clutch end plate, clutch discs and plates.

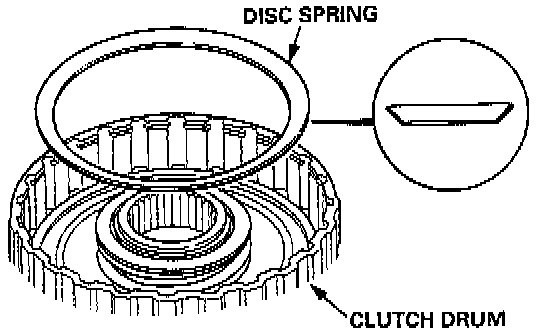

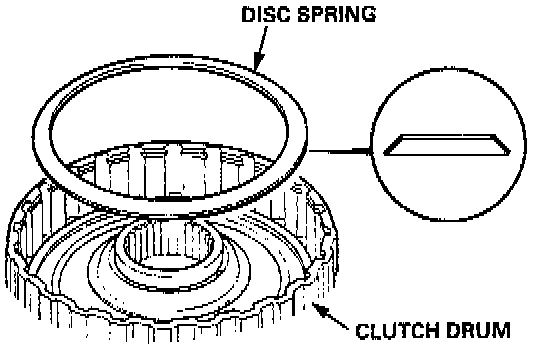

2. Remove the disc spring.

NOTE: The 3rd and 4th clutches do not have the disc spring.





NOTE: 1ST-HOLD CLUTCH.





NOTE: Some of the 1st clutch disc springs are not staked and can be removed from the 1st clutch piston. 1ST, 2ND and REVERSE CLUTCHES.

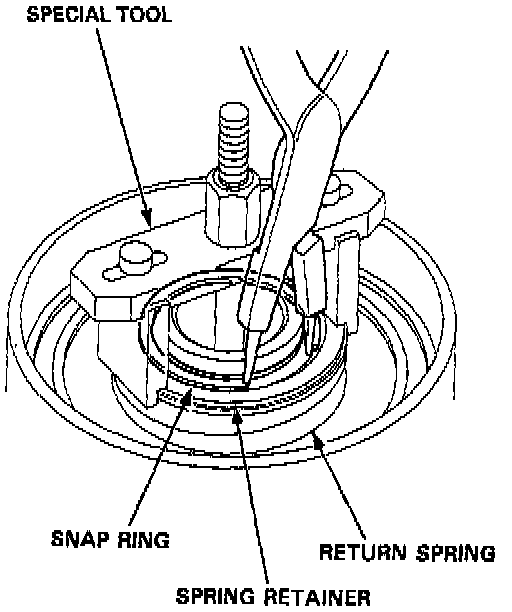

3. Install the special tools as shown.

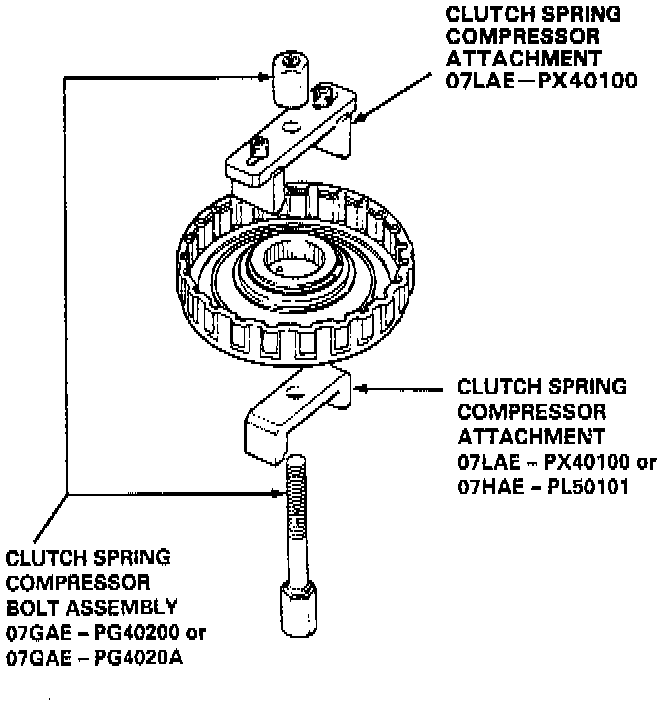

NOTE: For 2nd, 3rd, 1st-hold and reverse clutches.

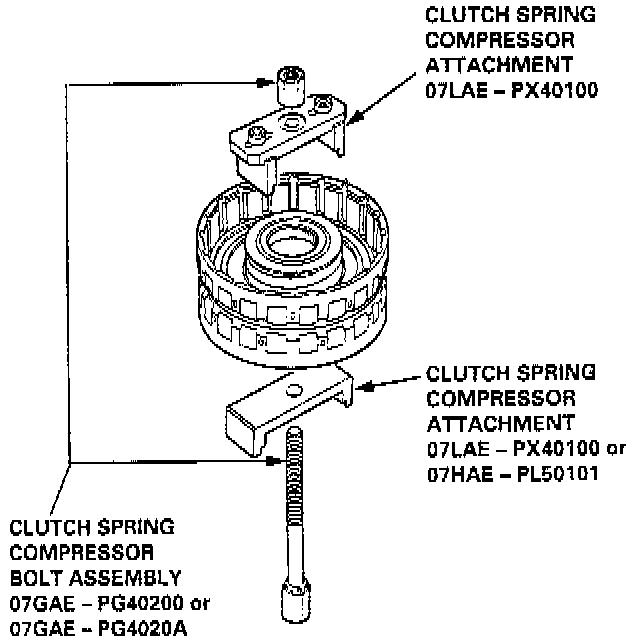

NOTE: For 1st and 4th clutches.

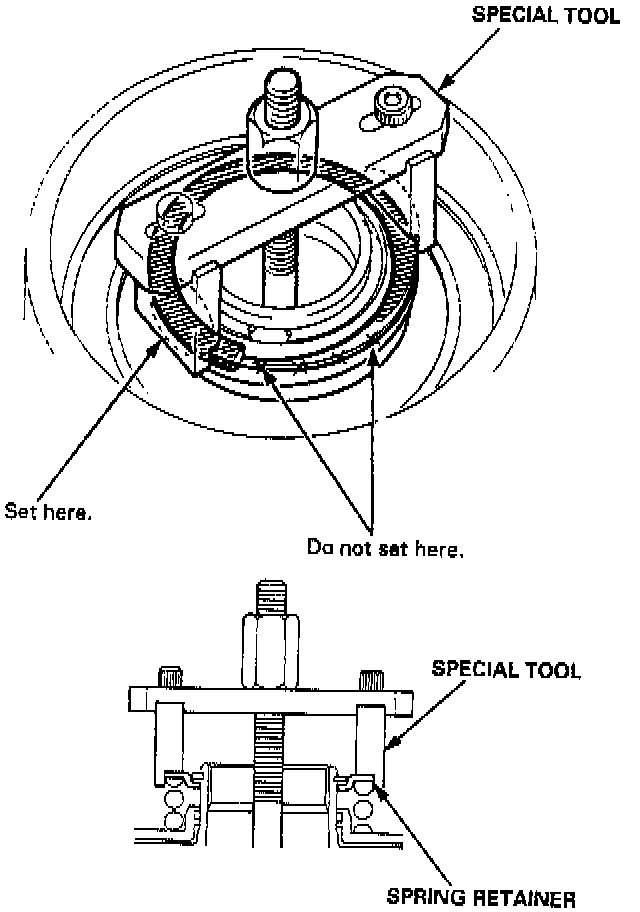

CAUTION: If either end of the special tool is set over an area of the spring retainer which is unsupported by the return spring, the retainer may be damaged. Be sure the special tool is adjusted to have full contact with the spring retainer.

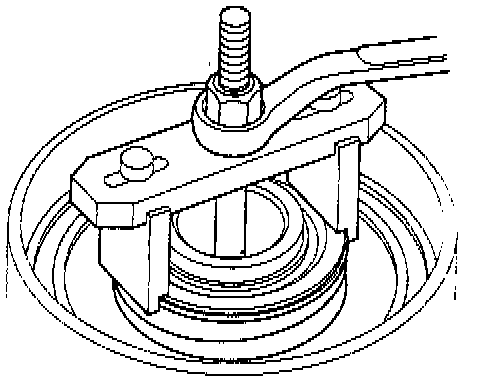

4. Compress the return spring with the special tool.





5. Remove the snap ring. Then remove the special tools, spring retainer and return spring.

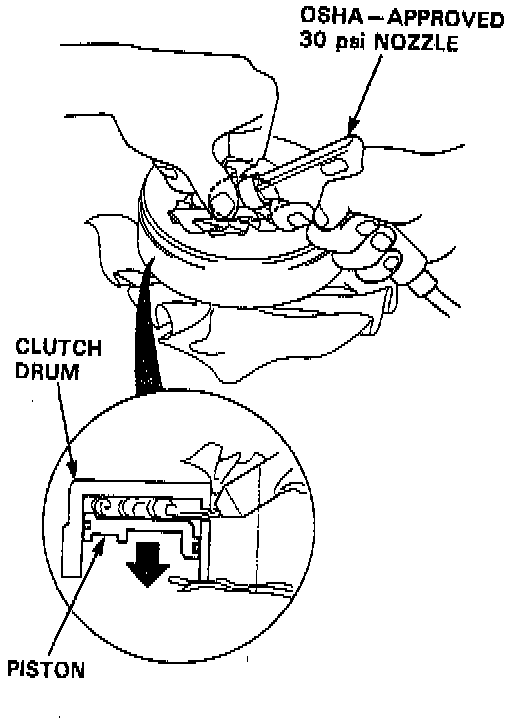

6. Wrap a shop rag around the clutch drum, and apply air pressure to the oil passage to remove the piston. Place a finger tip on the other end while applying air pressure.
