Oil Seal Replacement

TOOLS REQUIRED
- 07749-0010000 Driver
- 07LAD-SM40100 Seal Driver Attachment
- 07746-0010600 Attachment, 72 x 75 mm
- Or Equivalent

REMOVAL

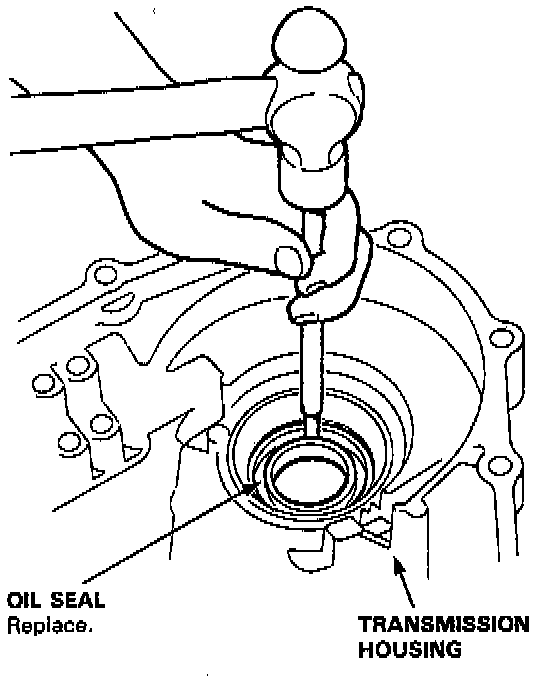

1. Remove the oil seal from the transmission housing.

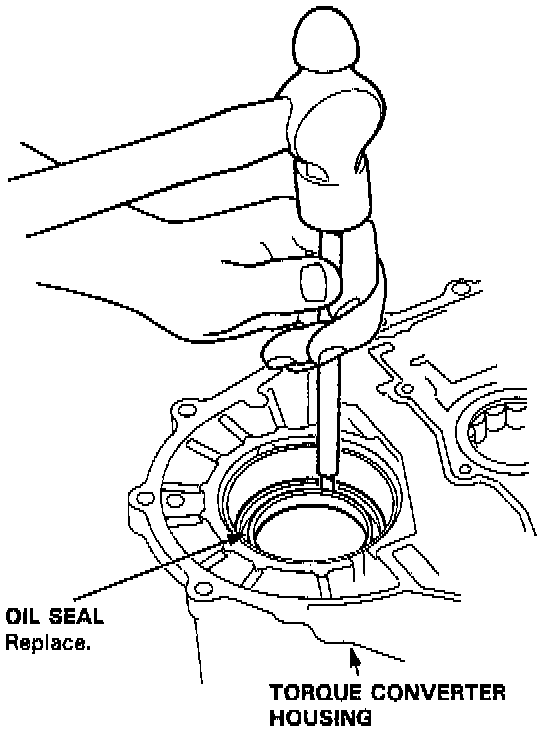

2. Remove the oil seal from the torque converter housing.

INSTALLATION

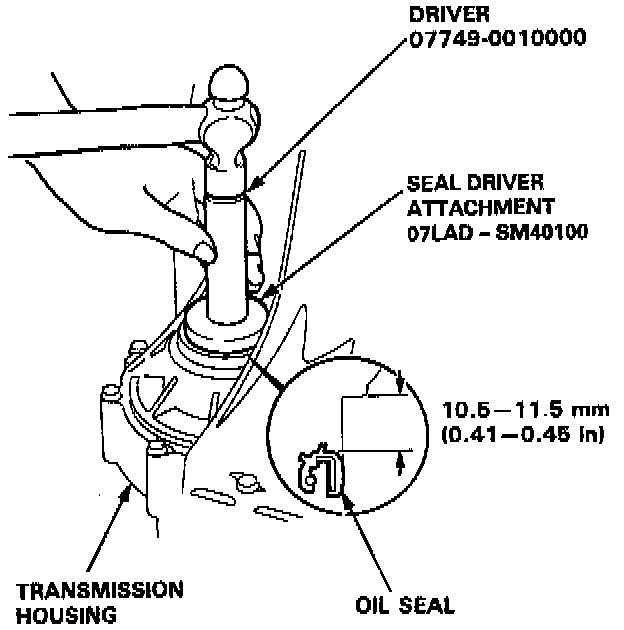

1. Install the oil seal in the transmission housing using the special tool as shown.
2. Drive the oil seal into the torque converter housing using the special tools as shown.
