Throttle Body: Service and Repair

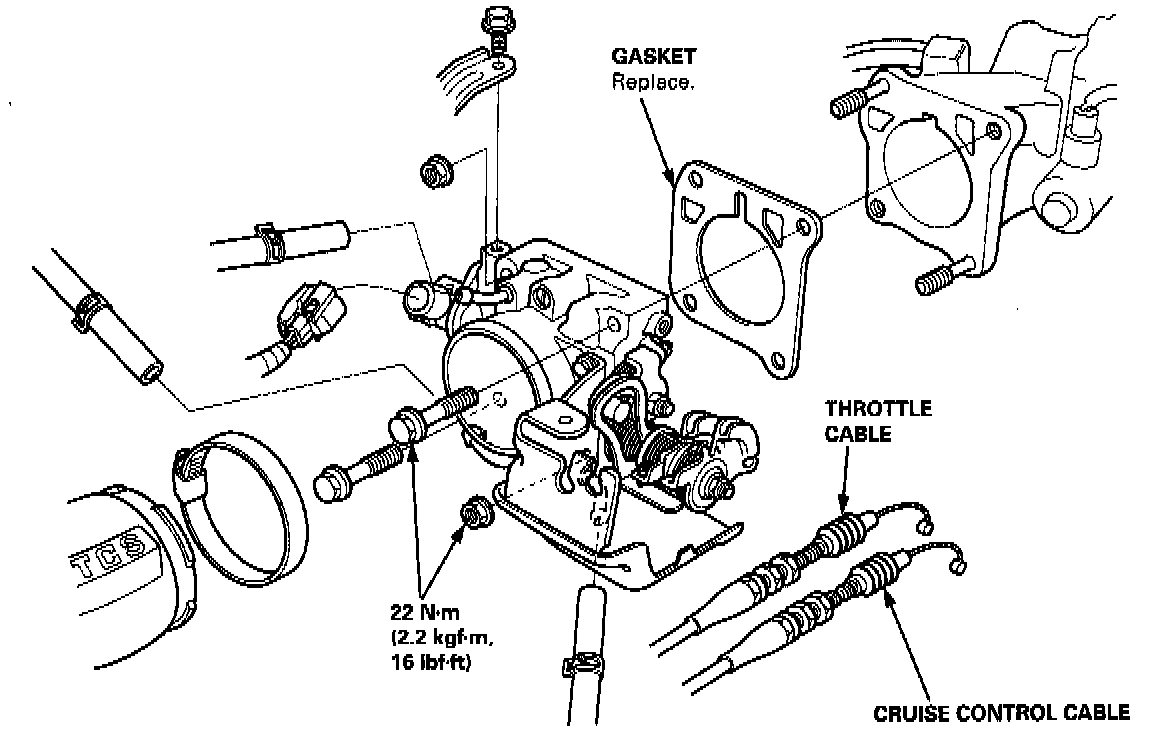

Disassembly
with TCS: Remove the TCS control valve.






CAUTION:

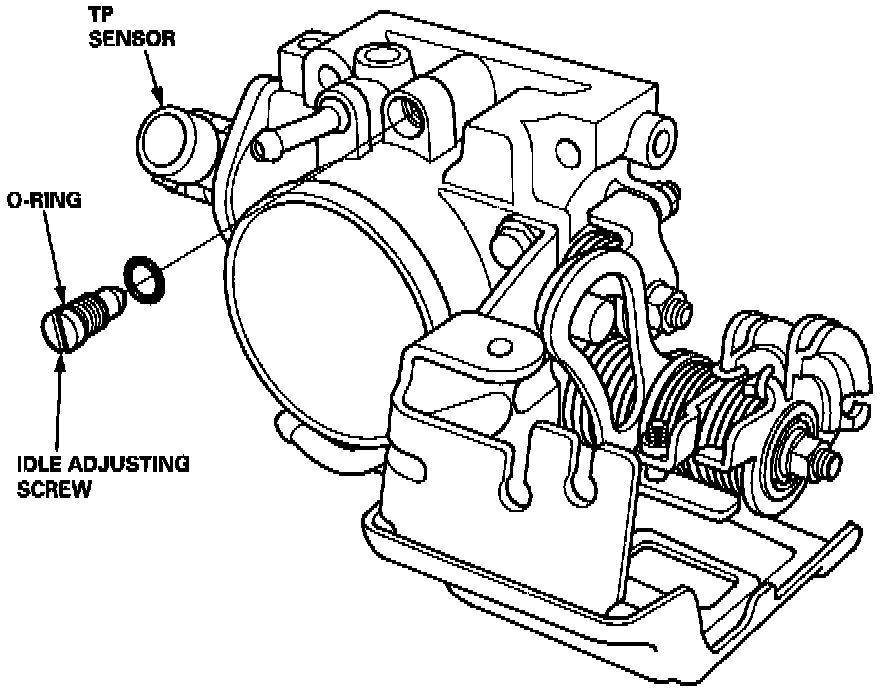

^ The throttle stop screw is non-adjustable.
^ After reassembly, adjust the throttle cable and the cruise control cable.
