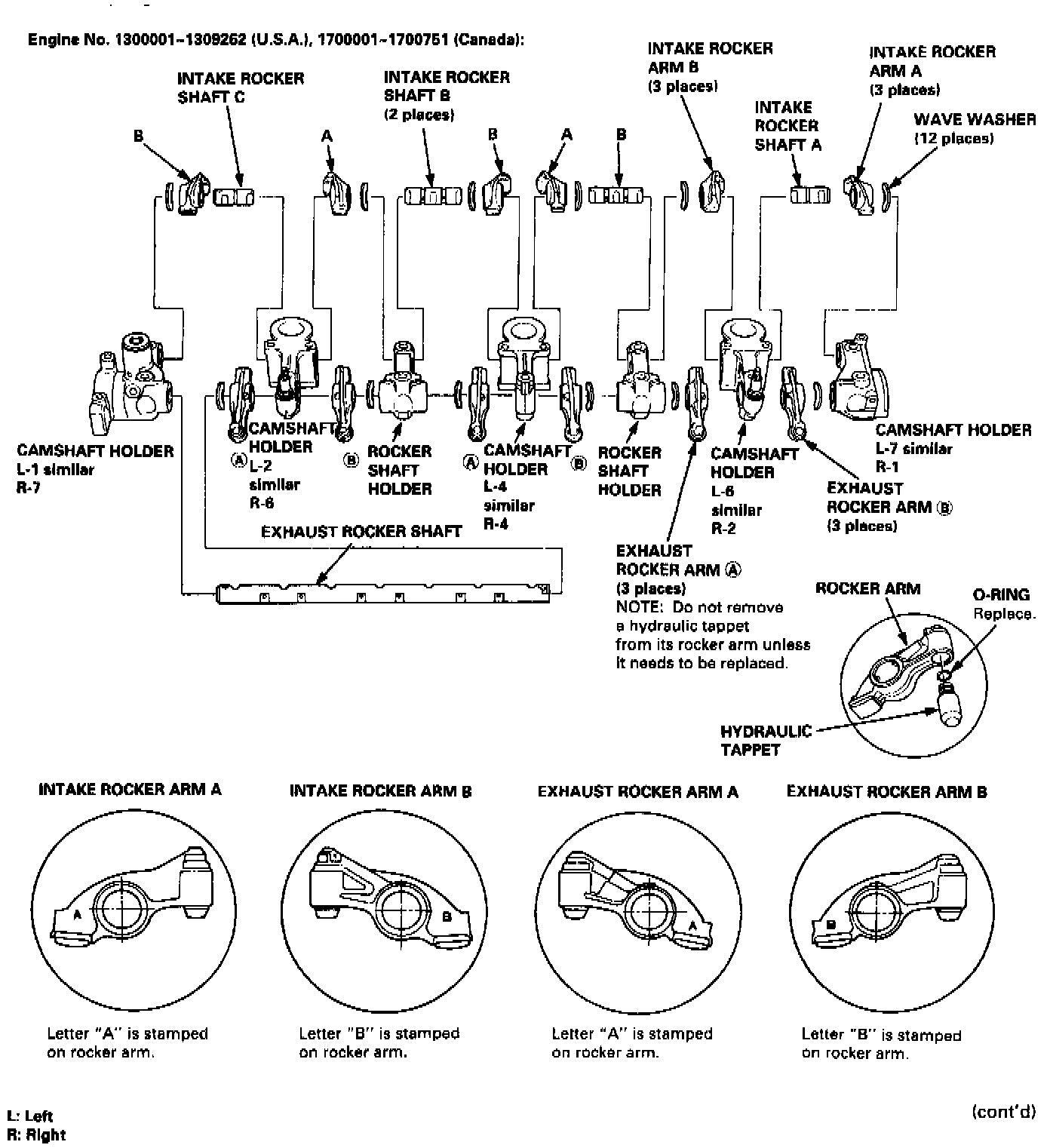

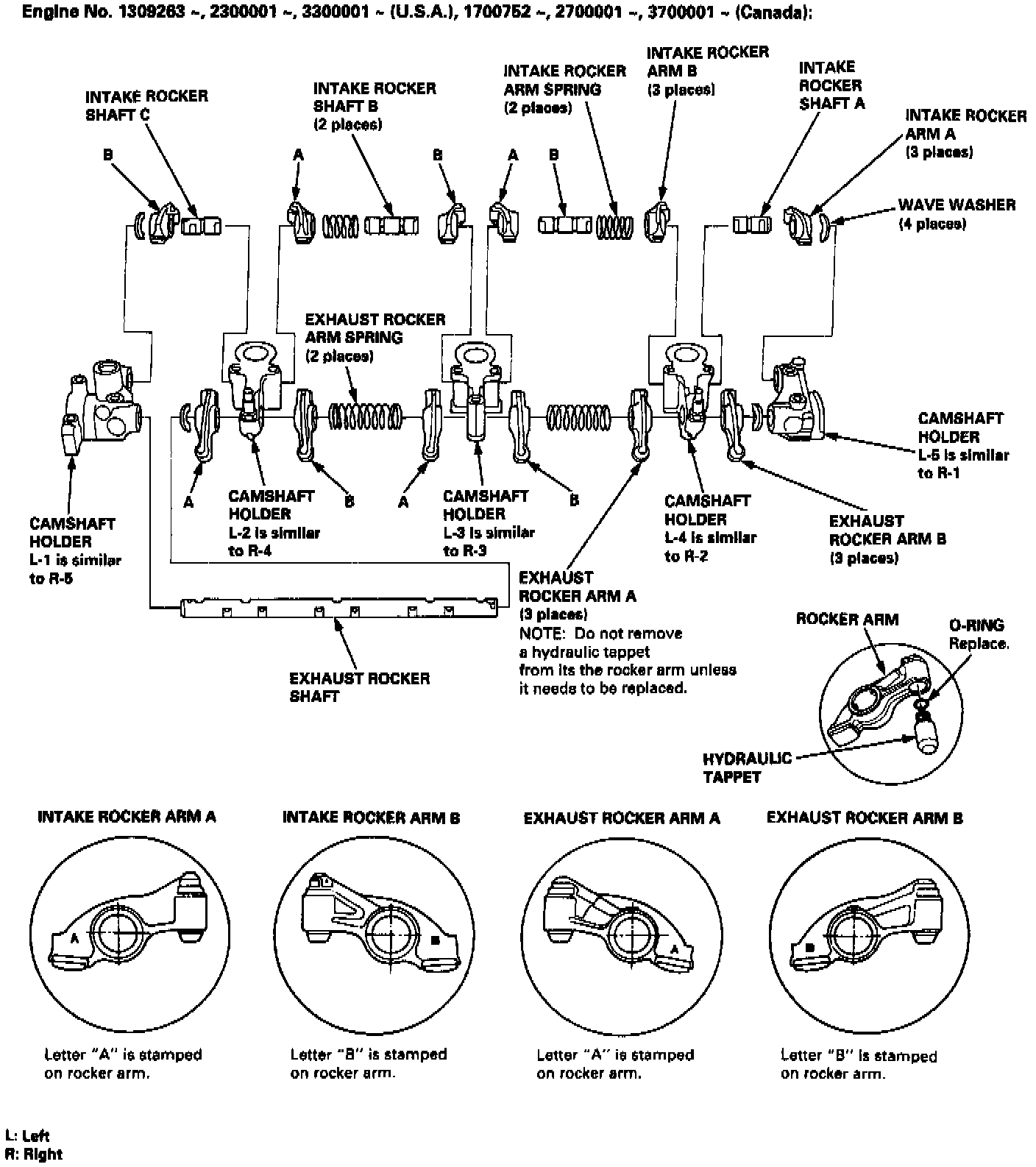

Disassembly/Reassembly

NOTE:
- Refer to rocker arm assembly removal.
- Identify parts as they are removed to ensure reinstallation in original locations.
- Inspect the rocker shafts rocker arms.
- Rocker arms must be installed in the same position if reused.
- When removing or installing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the holders, springs and rocker arms on the shaft.
