Home >> Acura >> 1998 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> By View Number >> View 81-90 >> View 83

View 83

Connector Views - C102 (96 Model Without TCS):

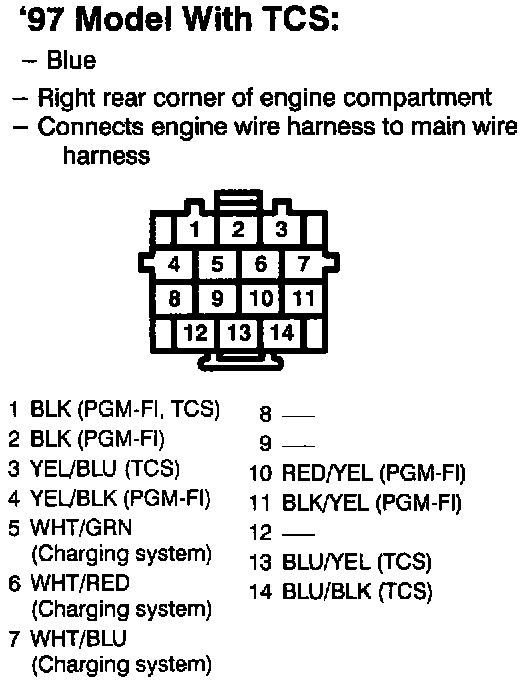

Connector Views - C102 (97 Model With TCS):
