Home >> Acura >> 1998 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> By View Number >> View 61-70 >> View 69 >> With Seat Heaters

With Seat Heaters

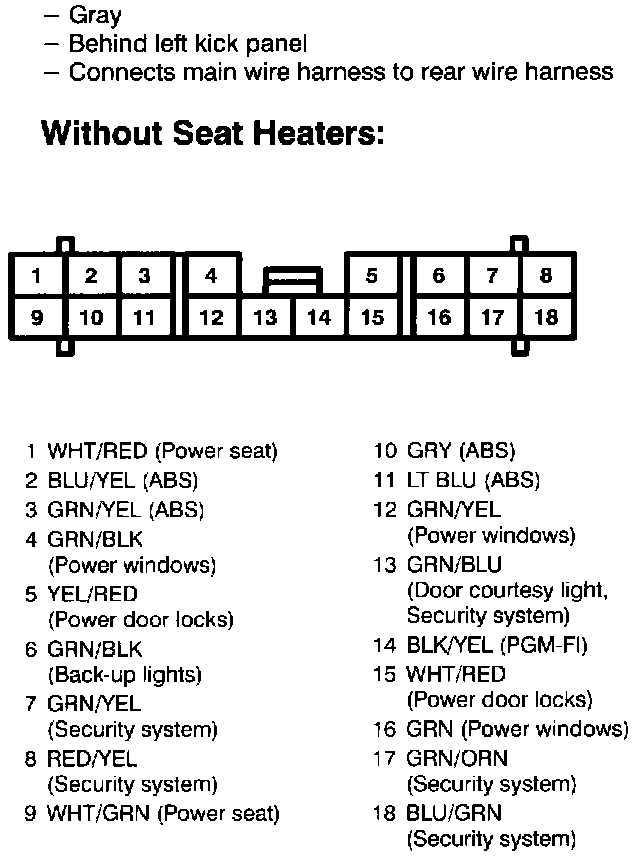

Connector Views - C415 (Without Seat Heaters):
