Home >> Acura >> 1998 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> By View Number >> View 21-30 >> View 22

View 22

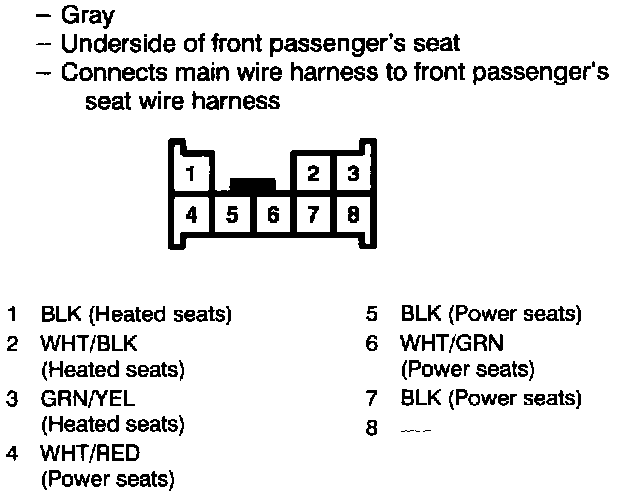

Connector Views - C453:
