Home
>>
Acura
>>
1998
>>
TL V6-3206cc 3.2L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
By View Number
>>
View 1-10
>>
View 5
View 5

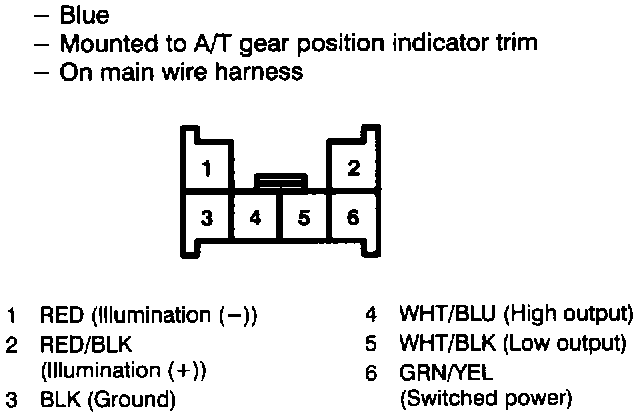

Connector Views - Driver's Seat Heater Switch:
