Component Tests and General Diagnostics

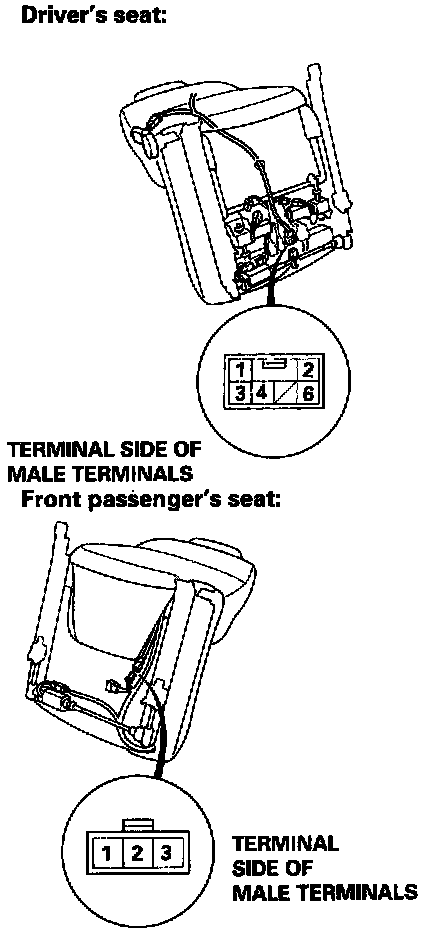

1. Disconnect the 6P (Driver's seat) or 3P (Front passenger's seat) connector as shown below.

Heater Test:

Driver's seat:

2. Check for continuity between the No. 3 and No. 4 (Driver's seat) or No. 2 (Front passenger's seat) terminals.

There should be continuity.
