Power Mirror Switch: Testing and Inspection
1.
Remove the switch as described in Function Test.
2.

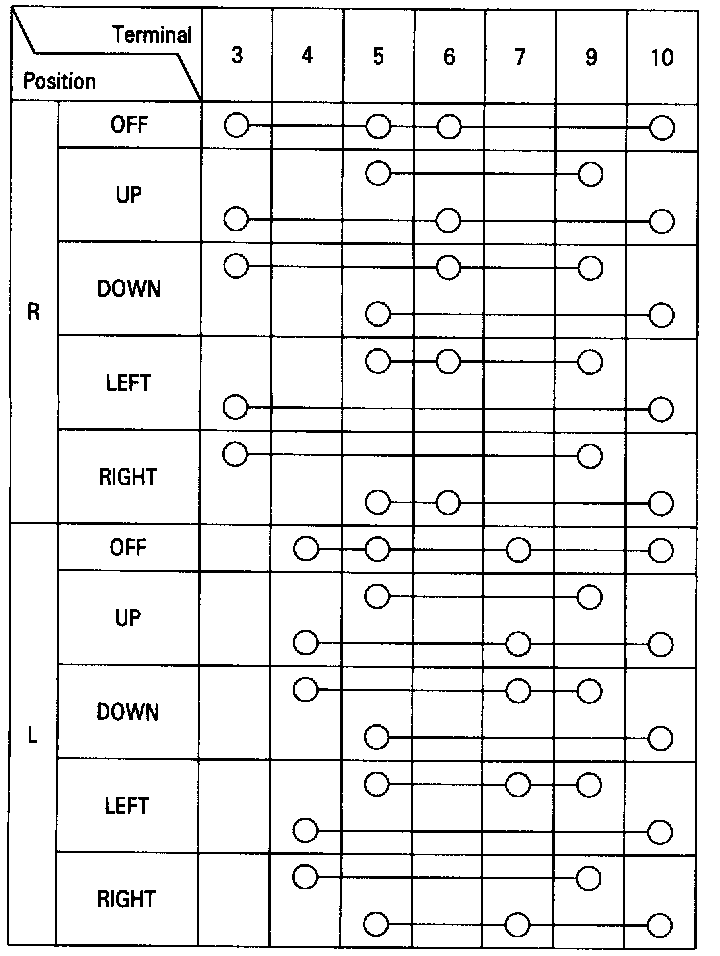

Check for continuity between the terminals in each switch position according to the table.

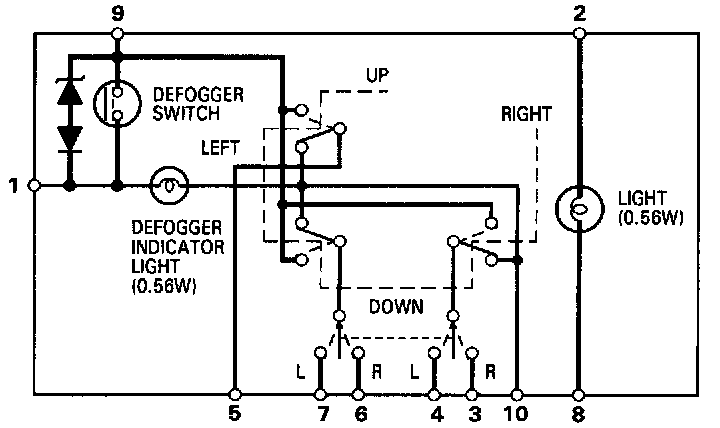

Switch Test:

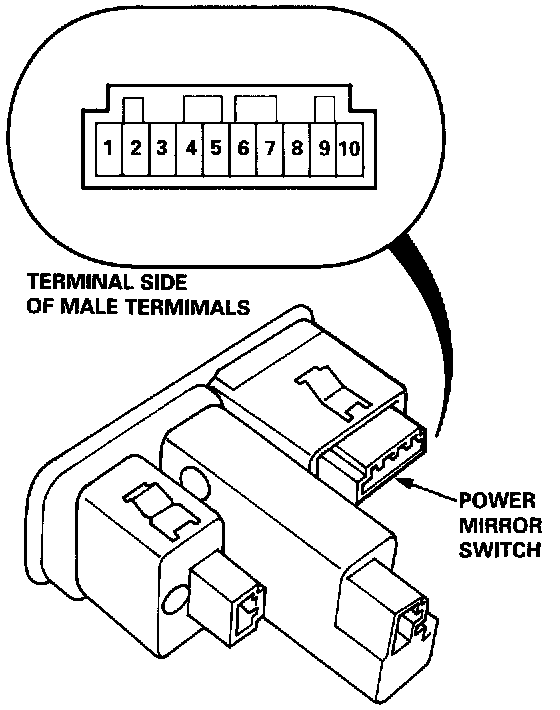

Mirror Switch:
Switch Test:
Switch Test:
