Windshield Washer Motor: Testing and Inspection

1. Remove the inner fender.

Windshield Washer Motor Test:

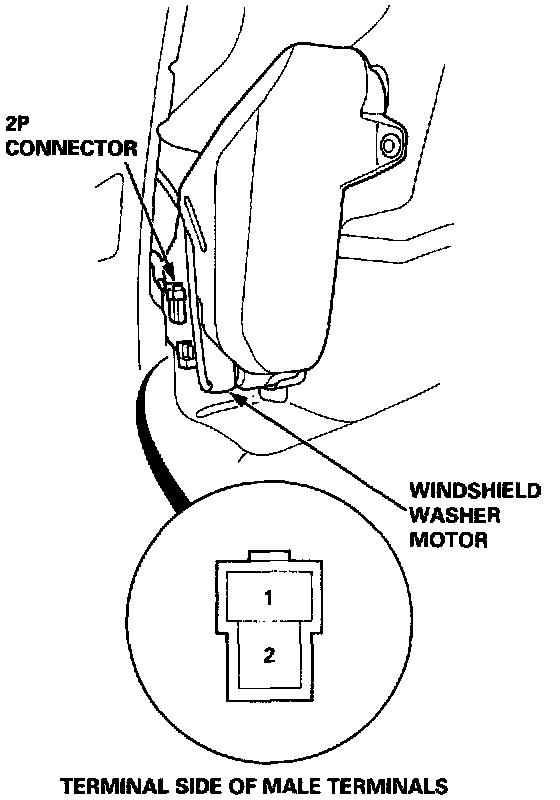

2. Disconnect the 2P connector from the washer motor.

Windshield Washer Motor Test:

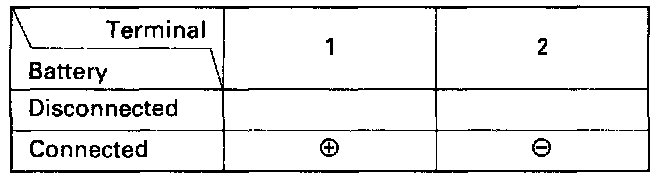

3. Test the washer motor operation by connecting battery power and ground according to the table.

^ If the motor fails to run smoothly, replace it.
^ If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged pump outlet in the motor.
