General Assembly

NOTE: Coat all parts with ATF before assembly.

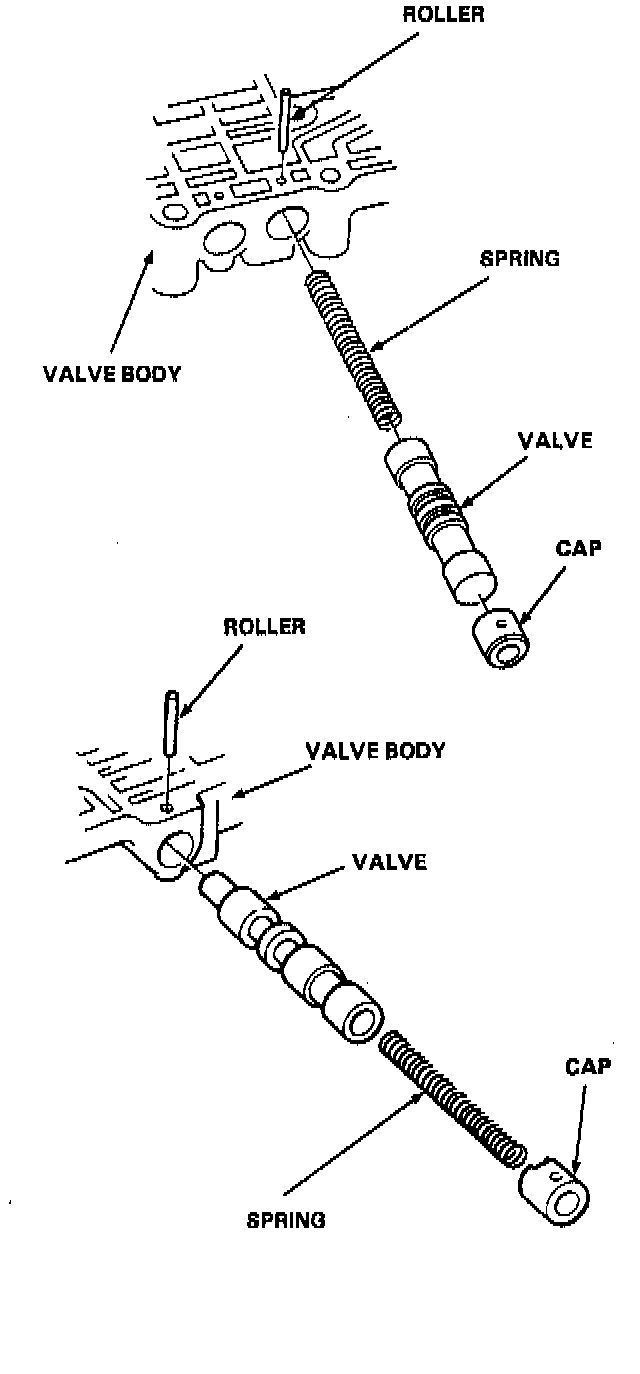

* Install the valve, valve spring and cap in the valve body, and secure with the roller.

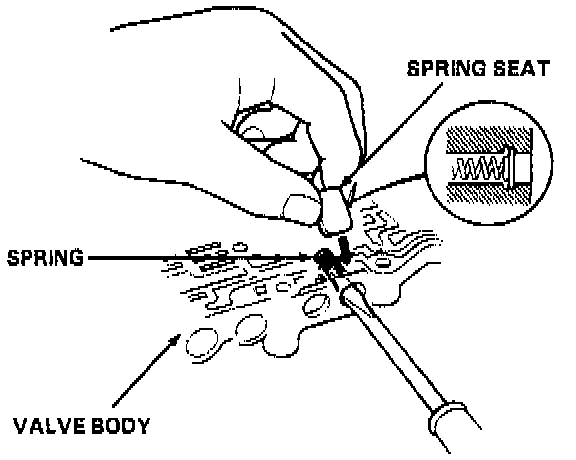

* Set the spring in the valve, then install them in the valve body. Push the spring in with a screwdriver, then install the spring seat.





* Install the valve, spring and cap in the valve body. Push the cap, then install the valve cap stopper.
