Transmission Mode Indicator - A/T: Testing and Inspection

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

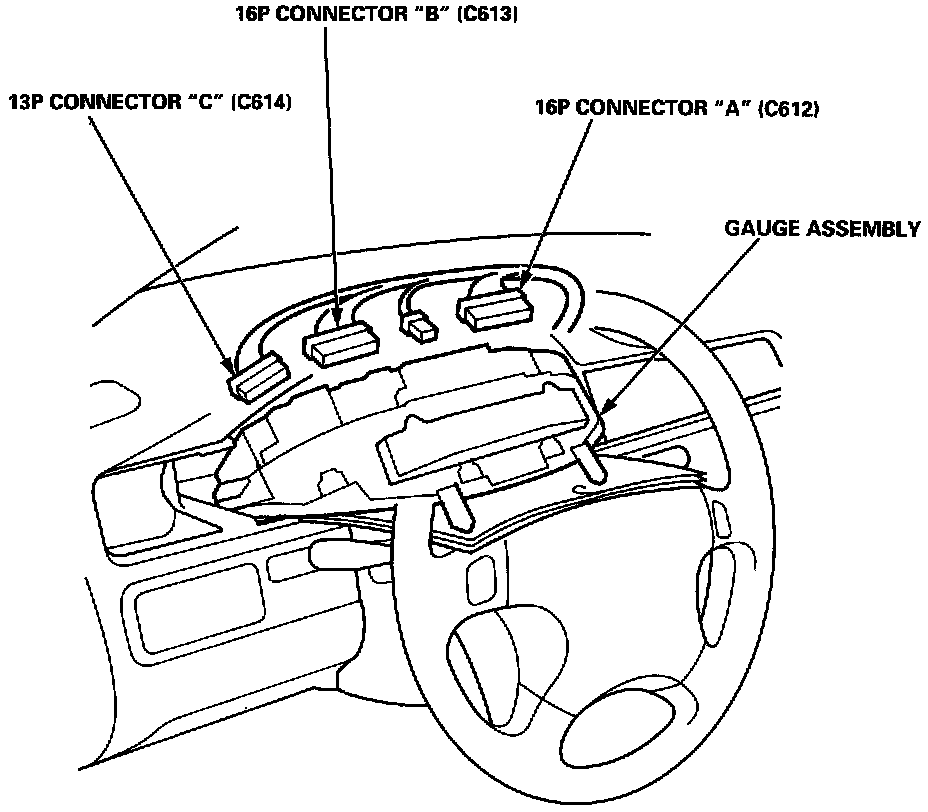

1. Remove the gauge assembly from the dashboard, and disconnect the 16P connectors (C612, C613), and 13P connector (C614) from the gauge assembly.

A/t Gear Position Indicator-Indicator Input Test:

2. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

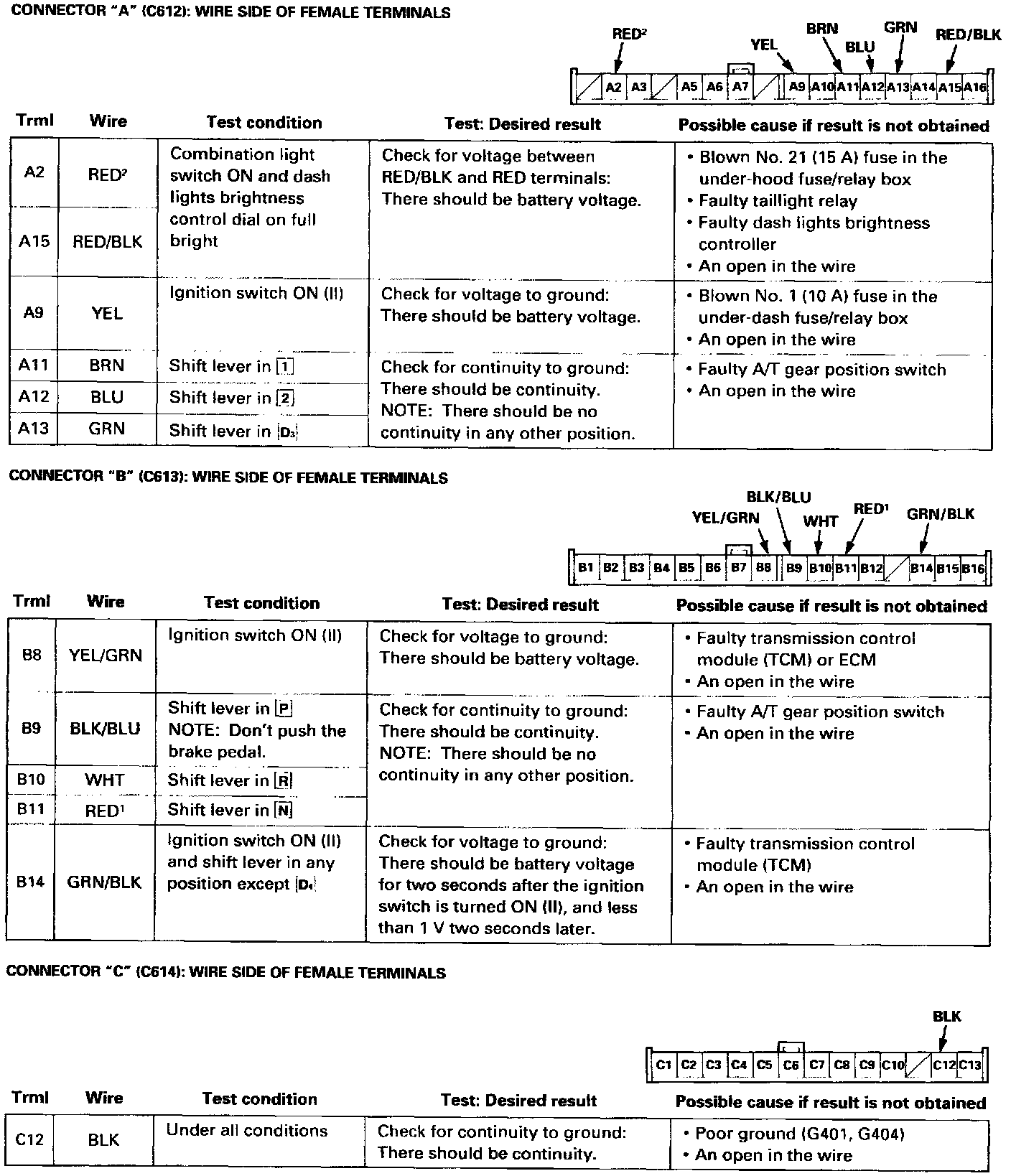

^ If the terminals look OK, make the following input tests at the 16P (C612, C613) and 13P (C614) connectors.
- If a test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, but the indicator is faulty, replace the printed circuit board.
