Shift Solenoid: Service and Repair

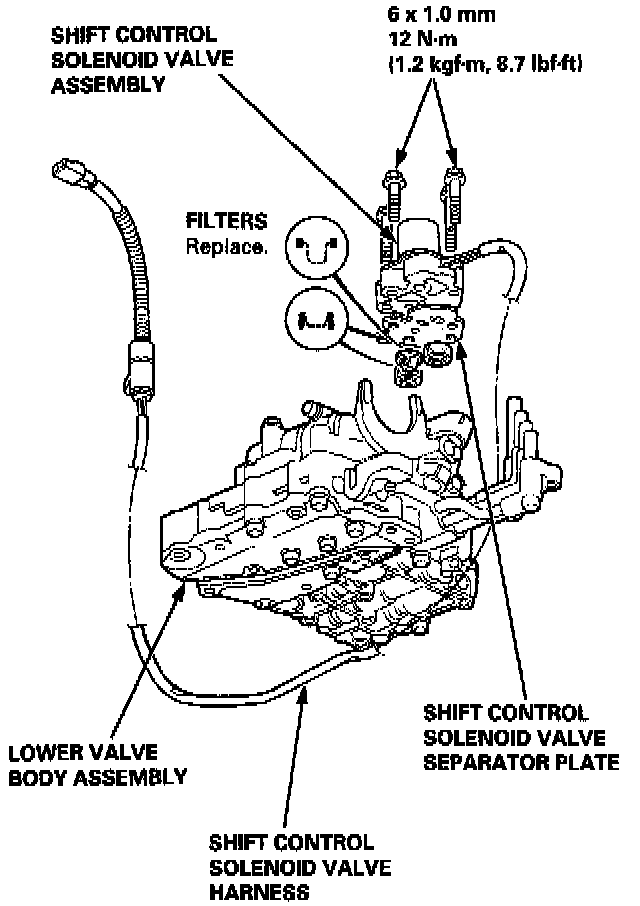

1. Remove the lower valve body assembly.




2. Remove the shift control solenoid valve assembly from the servo body.

NOTE: Be sure to remove or replace the shift control solenoid valves A and B as an assembly.

3. Check the shift control solenoid valve fluid passages for dust or dirt. If necessary, replace as an assembly.
4. Clean the mounting surface and fluid passages of the shift control solenoid valve assembly, and install a new shift control solenoid valve assembly and new filters.
