Shift Interlock Solenoid: Service and Repair

1. Remove the center console and shift lever knob.
2. Disconnect the connectors from the shift lock solenoid and parking pin switch.

Shift Lock Solenoid Replacement:

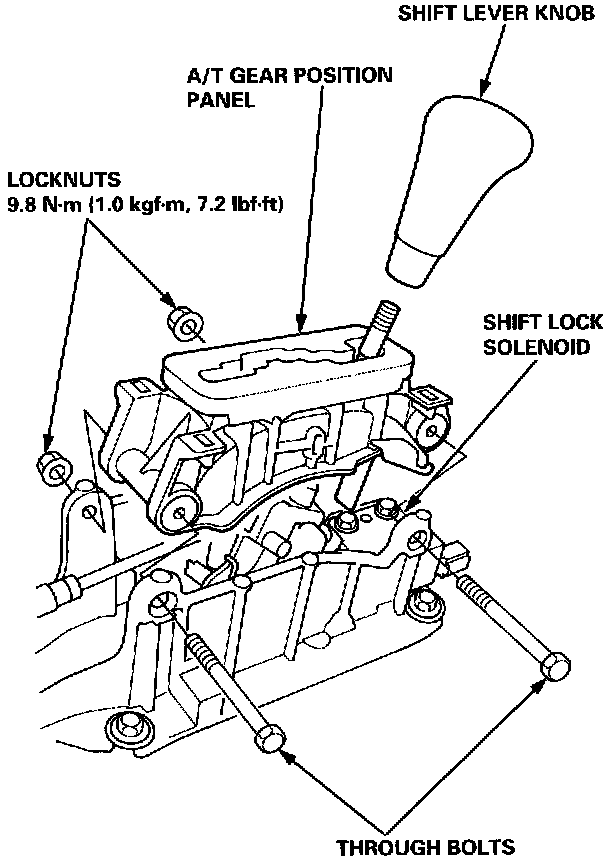

3. Remove the two locknuts and through bolts, then remove the A/T gear position panel.

Shift Lock Solenoid Replacement:

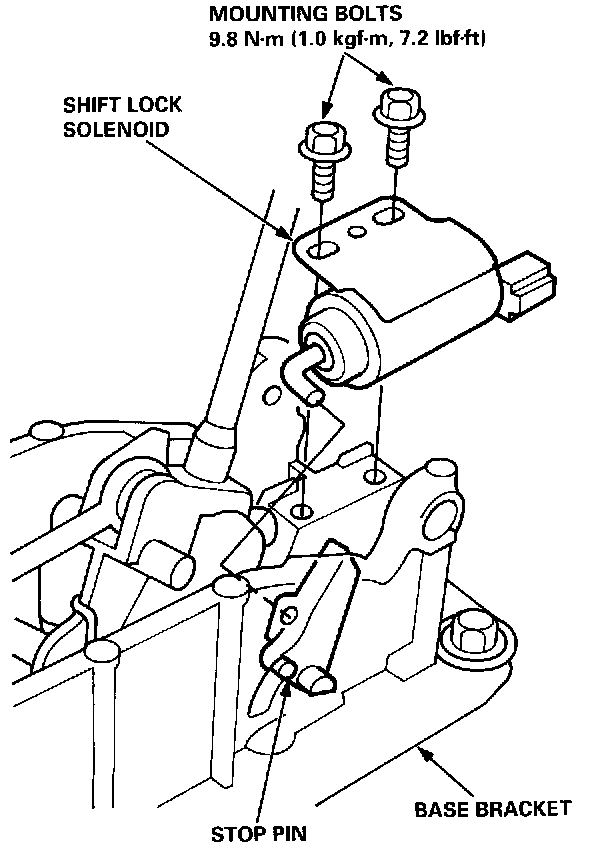

4. Remove the two mounting bolts, then remove the shift lock solenoid.

Shift Lock Solenoid Replacement:

5. Install the shift lock solenoid in the reverse order of removal.

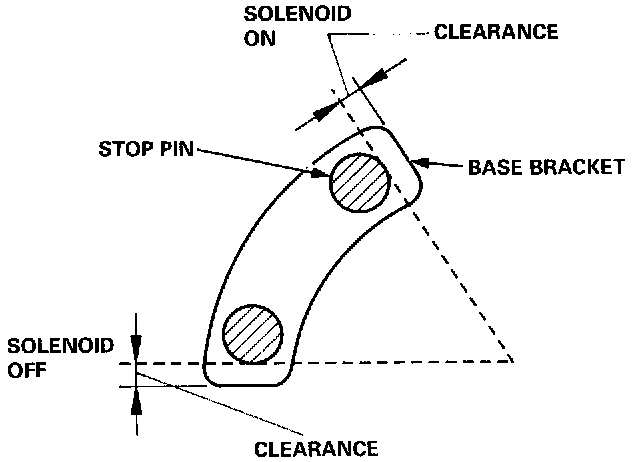

NOTE: Make sure there is clearance between the stop pin and base bracket when the solenoid is ON and OFF.
