Rear Cover

TOOLS REQUIRED
* 07GAB-PF50100 Mainshaft Holder
* Or Equivalent





NOTE:
* Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
* Blow out all passages.
* When removing the rear cover, replace the following:
- O-rings
- Mainshaft and countershaft locknuts
- Conical spring washers

1. Remove the one bolt securing the A/T gear position switch harness clamp.
2. Remove the eight bolts securing the rear cover, then remove the rear cover.
3. Remove the four ATF feed pipes from the transmission housing.

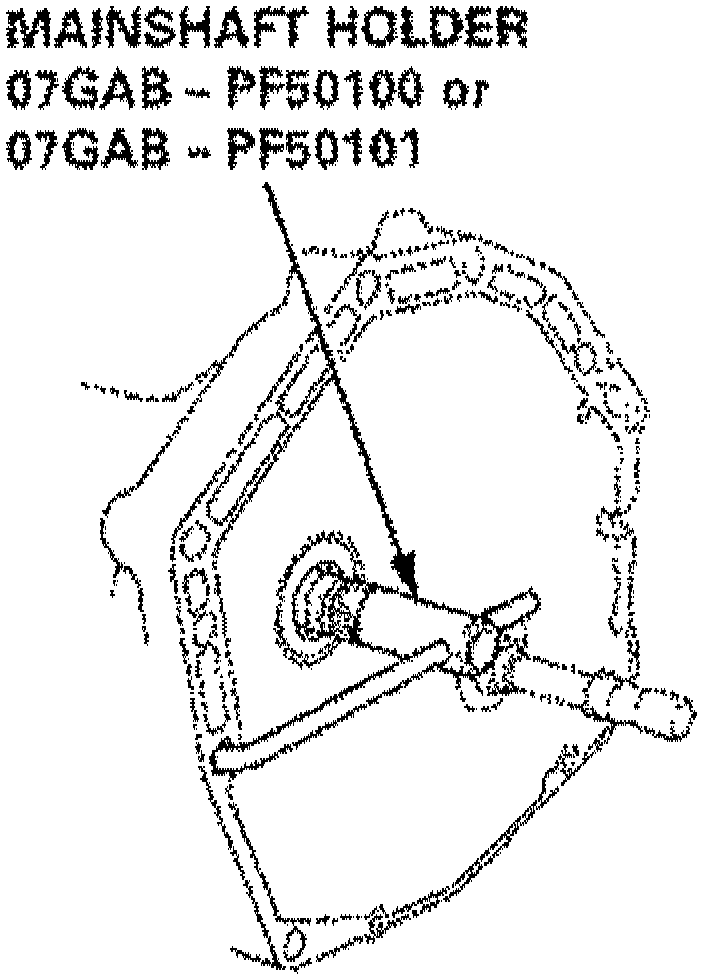

4. Slip the special tool onto the mainshaft.
5. Engage the parking brake pawl with the parking gear.





6. Cut the lock tabs of each shaft locknut using a chisel as shown. Then remove the locknuts and conical spring washers from each shaft.

CAUTION: Keep all of the chiseled particles out of the transmission.

NOTE:
* Mainshaft locknut has left-hand threads.
* Always wear the safety glasses.

7. Remove the special tool from the mainshaft after removing the locknuts.
8. Remove the 1st-hold clutch assembly, thrust washer, thrust needle bearing and 1st-hold clutch hub from the countershaft.
9. Remove the 1st clutch assembly, thrust washer, thrust needle bearing and 1st gear from the mainshaft.
10. Remove the 1st gear, one-way clutch, needle bearings, 1st gear collar and parking gear from the countershaft.
11. Remove the thrust washer and 1st gear collar from the mainshaft.
12. Remove the parking brake pawl, shaft, spring, and stopper from the transmission housing.
