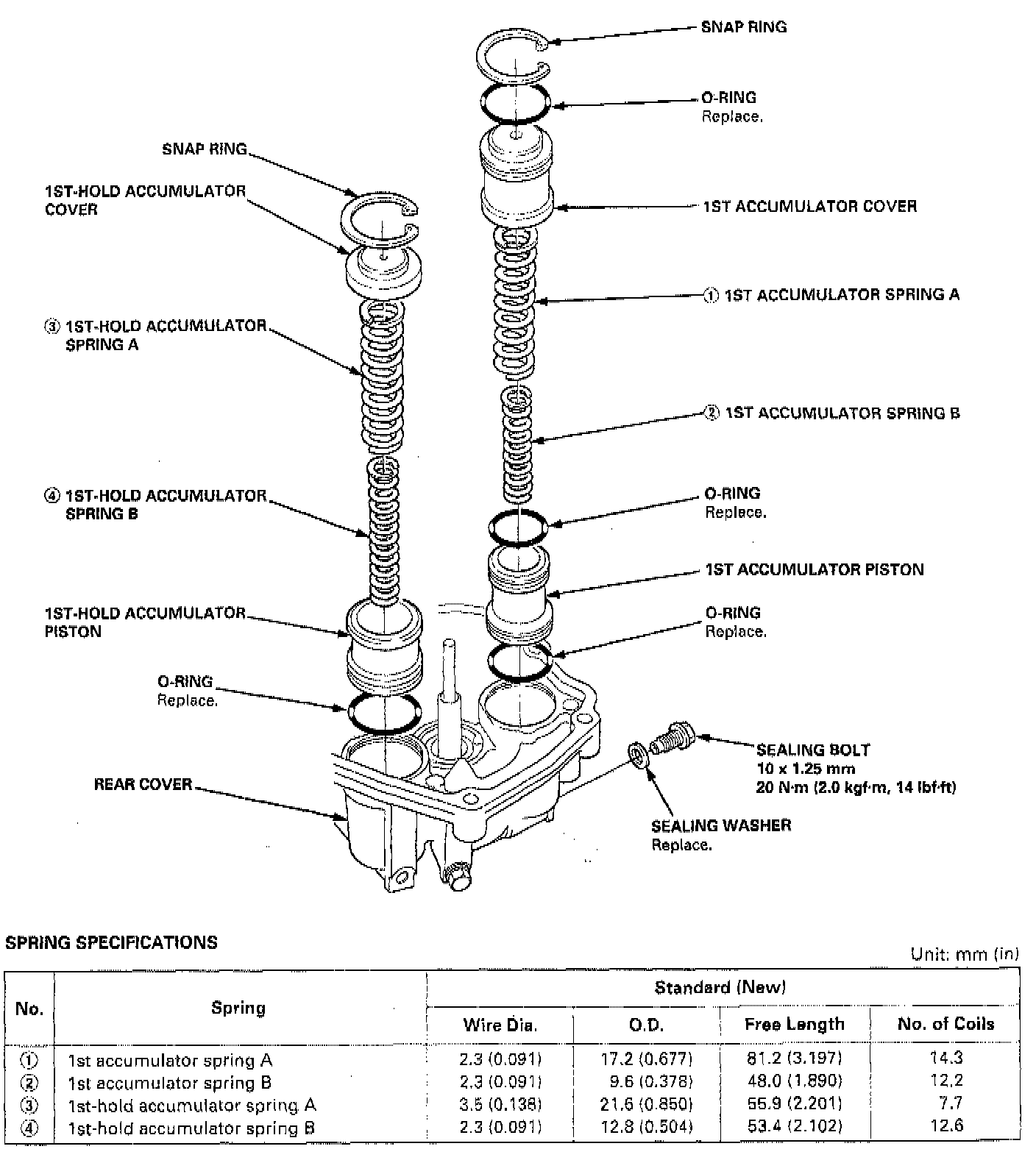

1ST Accumulator/1ST-Hold Accumulator





NOTE:
* Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
* Blow out all passages.
* Coat all parts with ATF during assembly.
* Replace the O-rings and sealing washer.
