Rear

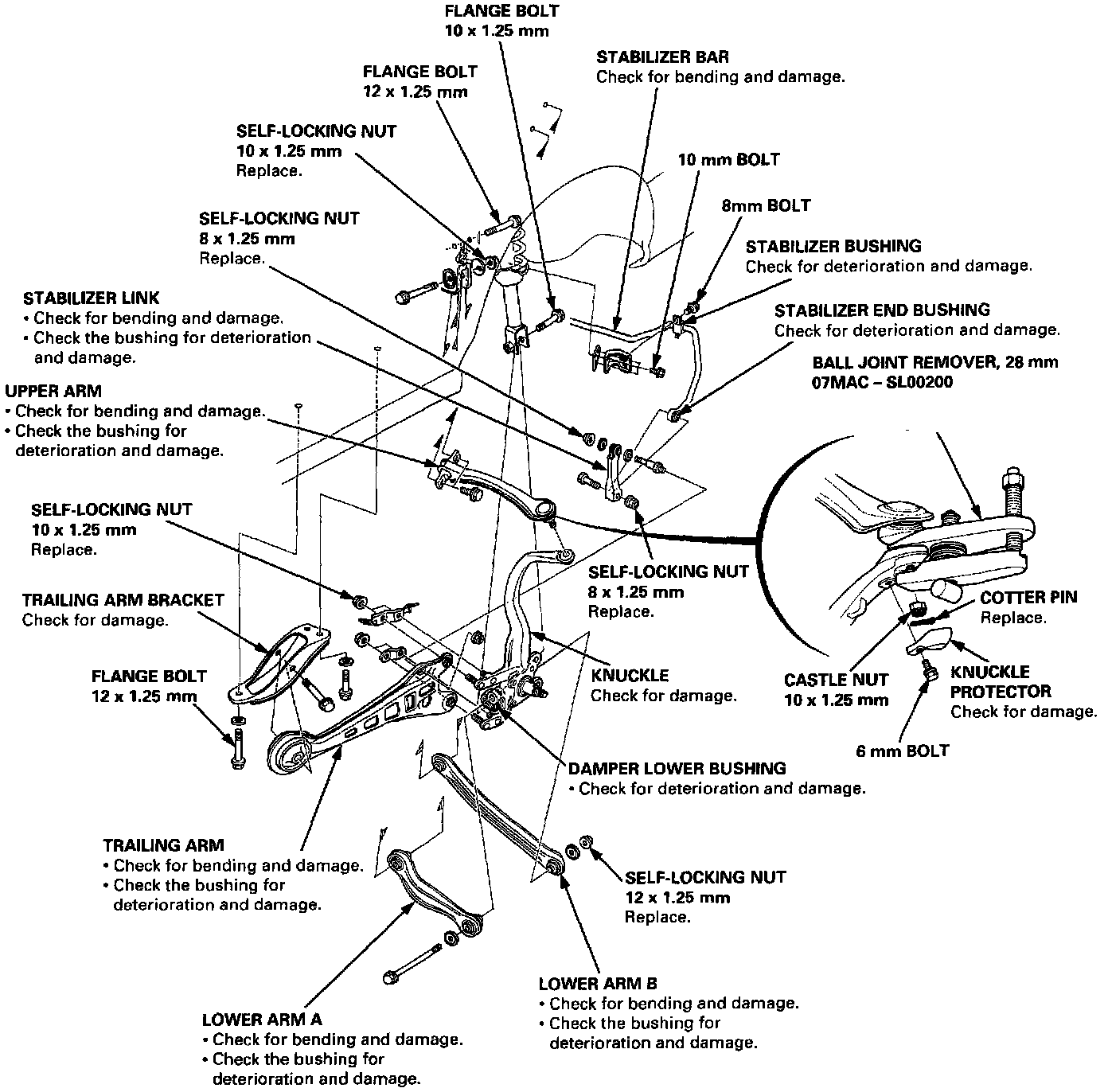

REMOVAL/INSPECTION





CAUTION:
- Replace the self-locking nuts after removal.
- Be careful not to damage the ball joint boot.

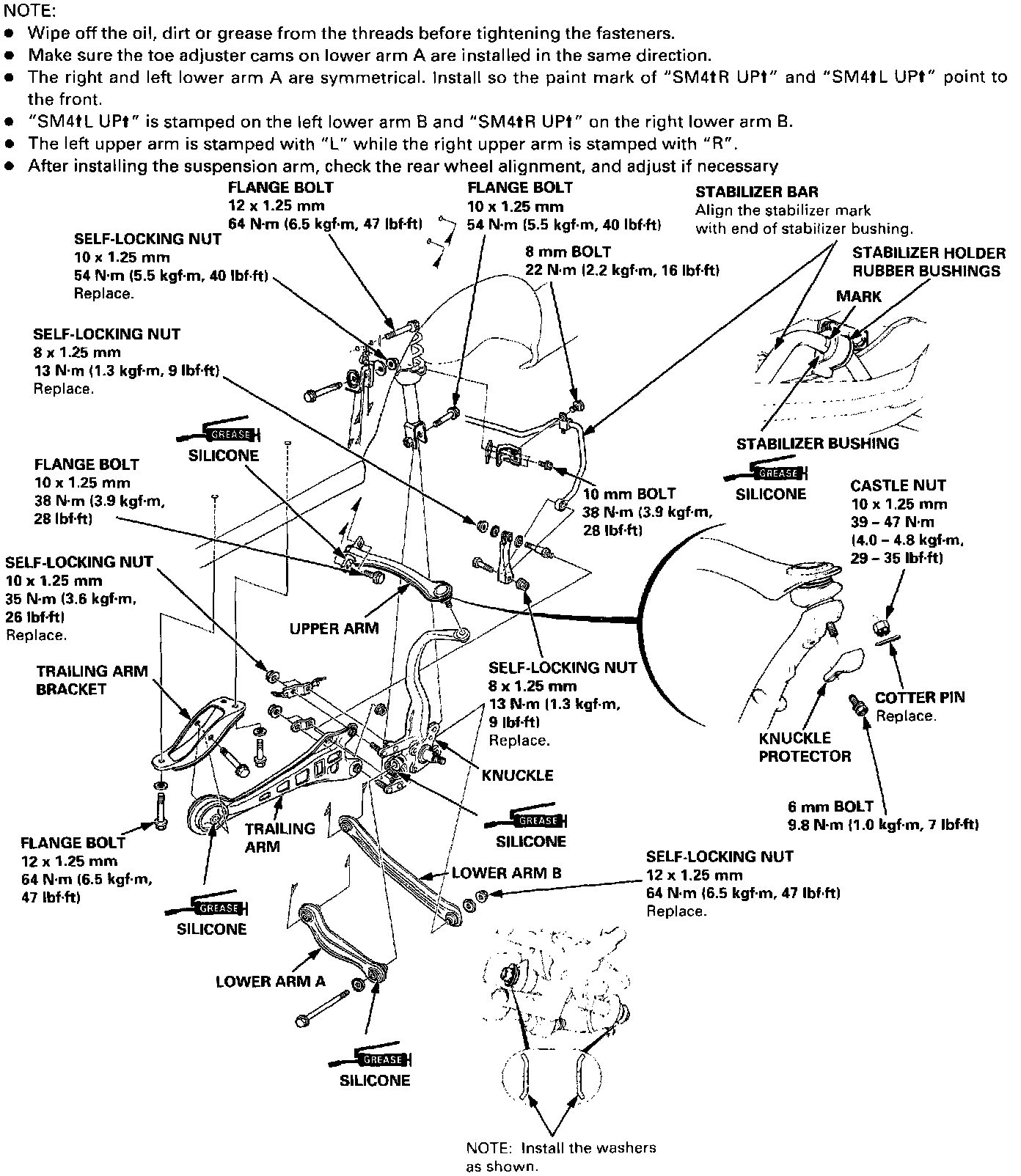

INSTALLATION






CAUTION:
- Any bolts or nuts connected to rubber mounts or bushings should be tightening with the vehicle on the ground.
- Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the pin hole. Do not align the nut by loosening.
