Steering Column Lock: Service and Repair

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

Removal:
1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.

Steering Lock Replacement:

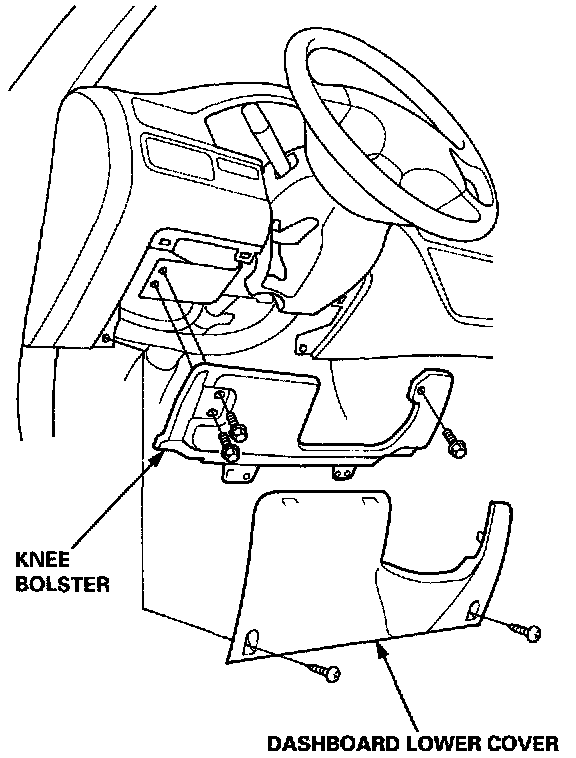

3. Remove the dashboard lower cover and knee bolster.

Steering Lock Replacement:

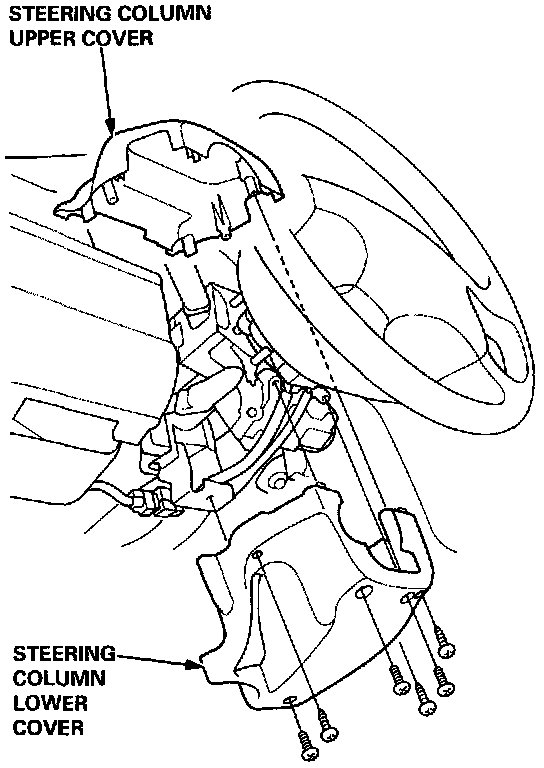

4. Remove the steering column covers.

Steering Lock Replacement:

5. Disconnect the connectors from the switch.

Steering Lock Replacement:

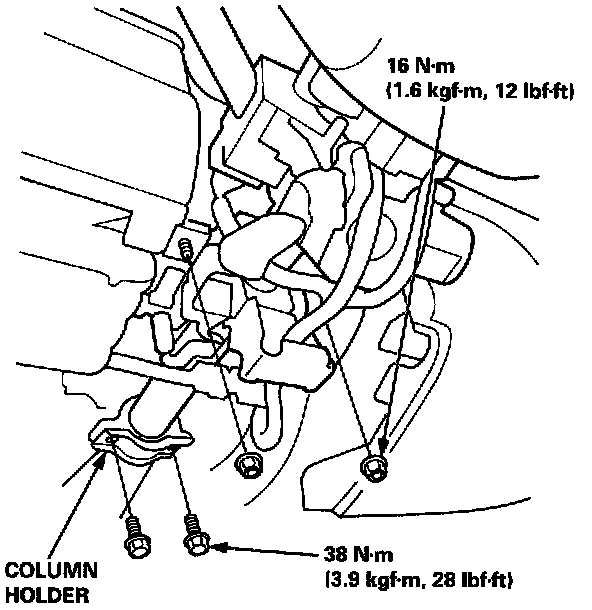

6. Remove the column holder mounting bolts and nuts.
7. Lower the steering column assembly.

Steering Lock Replacement:

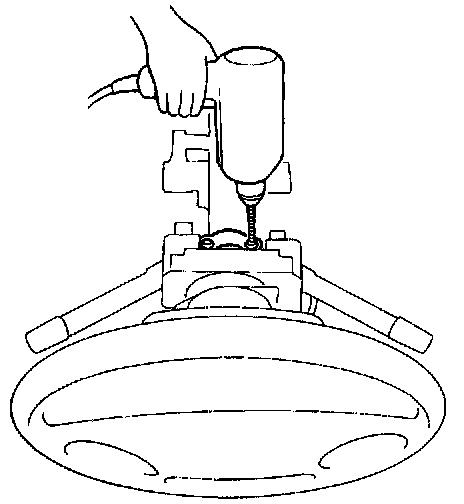

8. Center-punch each of the two shear bolts, and drill their heads off with a 5 mm (3/16 in) drill bit.

CAUTION: Do not damage the switch body when removing the shear bolts.

9. Remove the shear bolts from the switch body, then remove the steering lock assembly.

Installation:
1. Install the new ignition switch without the key inserted.
2. Loosely tighten the new shear bolts.
3. Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.

Steering Lock Replacement:

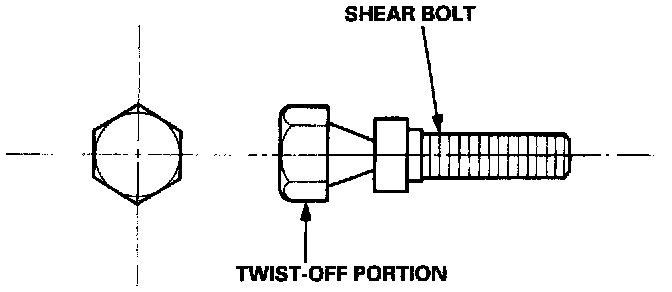

4. Tighten the shear bolts until the hex heads twist off.
5. Install in the reverse order of removal.
6. Enter the anti-theft code for the radio, then enter the customer's radio station presets.
