Canister Purge Control Valve: Service and Repair

Evaporative Emission (EVAP) Control Canister and EVAP Control Canister Vent Shut Valve Replacement
1. Remove the front bumper.
2. Disconnect the hoses from the EVAP control canister, and disconnect the 2P connector from the EVAP control canister vent shut valve.
3. Remove the EVAP control canister.

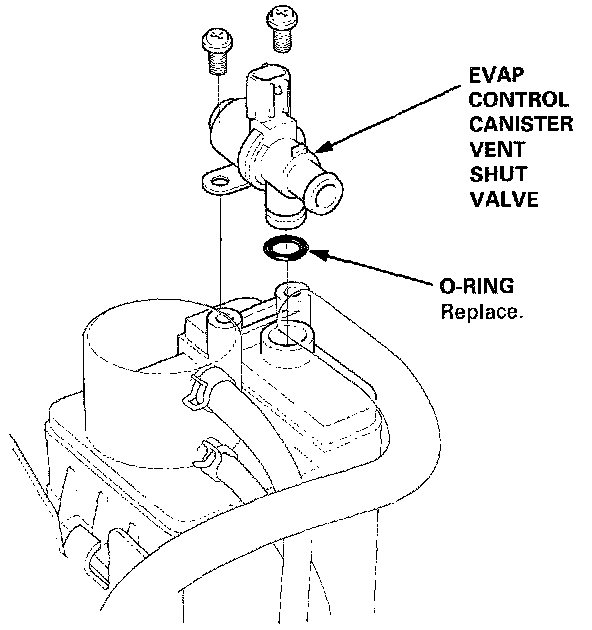

4. Remove the EVAP control canister vent shut valve.
