Home >> Acura >> 1998 >> TL L5-2451cc 2.5L SOHC MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Under-Hood ABS Fuse/Relay Box >> Alternate View >> 95-96 Models

95-96 Models

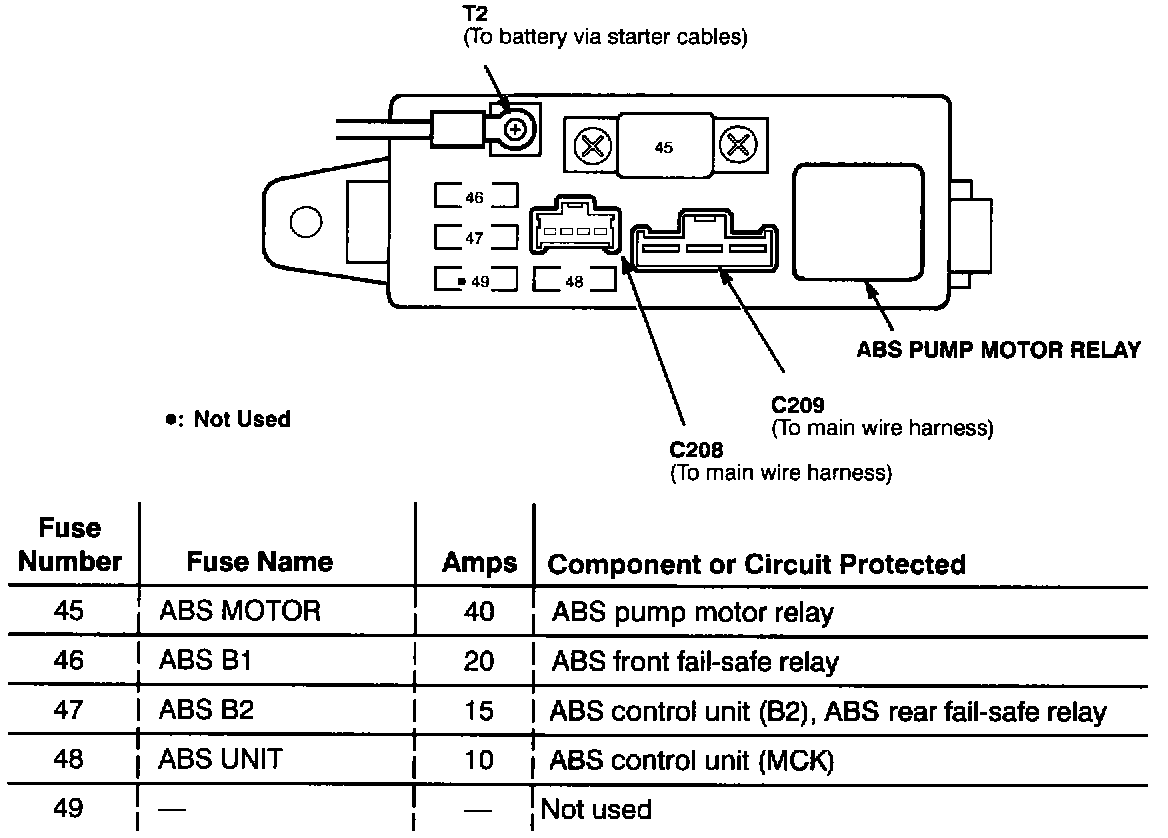

Under-hood ABS Fuse/Relay Box:
