Blower Unit Removal and Installation

Blower unit replacement

1. Remove the evaporator. Refer to Evaporator Case - Service and Repair - Procedures Service and Repair

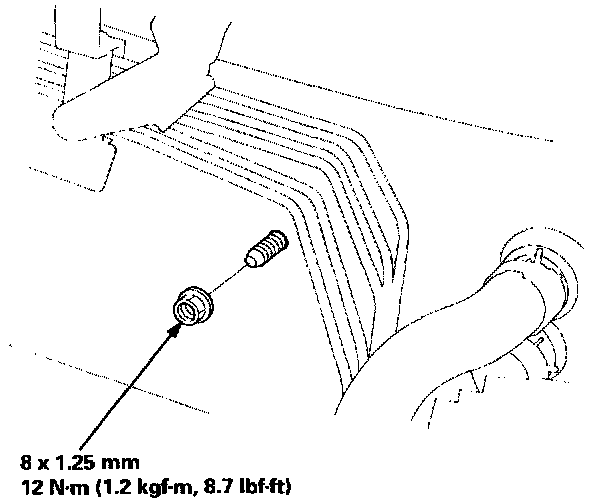

2. Remove the mounting nut from the blower unit.

NOTE: When removing the mounting nut, take care not to damage or bend the fuel pipes, brake pipes, etc.

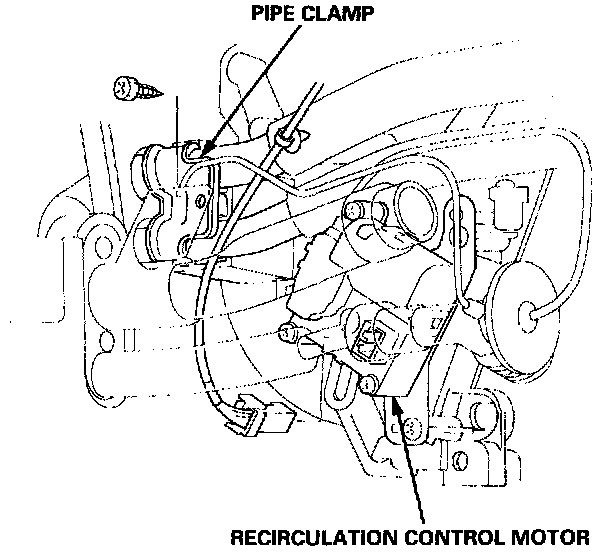

3. Disconnect the connector from the recirculation control motor, and remove the self-tapping screw from the pipe clamp.






4. Remove the mounting bolt, then remove the blower unit by moving it back and toward the right.

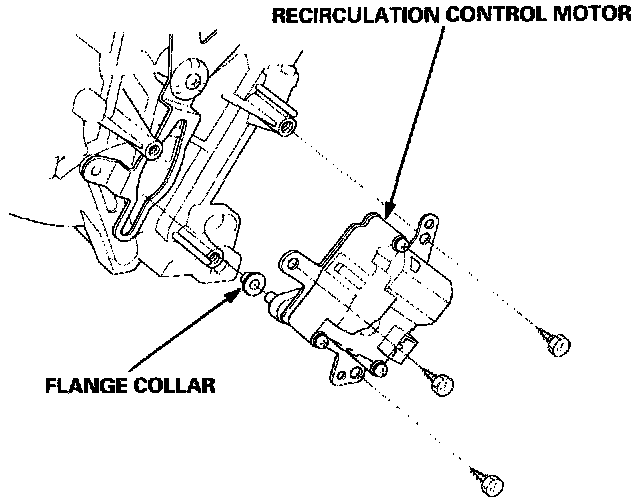

5. If necessary, remove the three self-tapping screws, the recirculation control motor and the flange collar.

6. Install in the reverse order of removal. Make note of the following items.
Make sure that the recirculation control doors and linkage move smoothly without binding.
After reinstalling the recirculation control motor, make sure the recirculation control motor runs smoothly.
Make sure that there is no air leakage.
