Home
>>
Acura
>>
1998
>>
TL L5-2451cc 2.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Circuit Diagrams
Circuit Diagrams

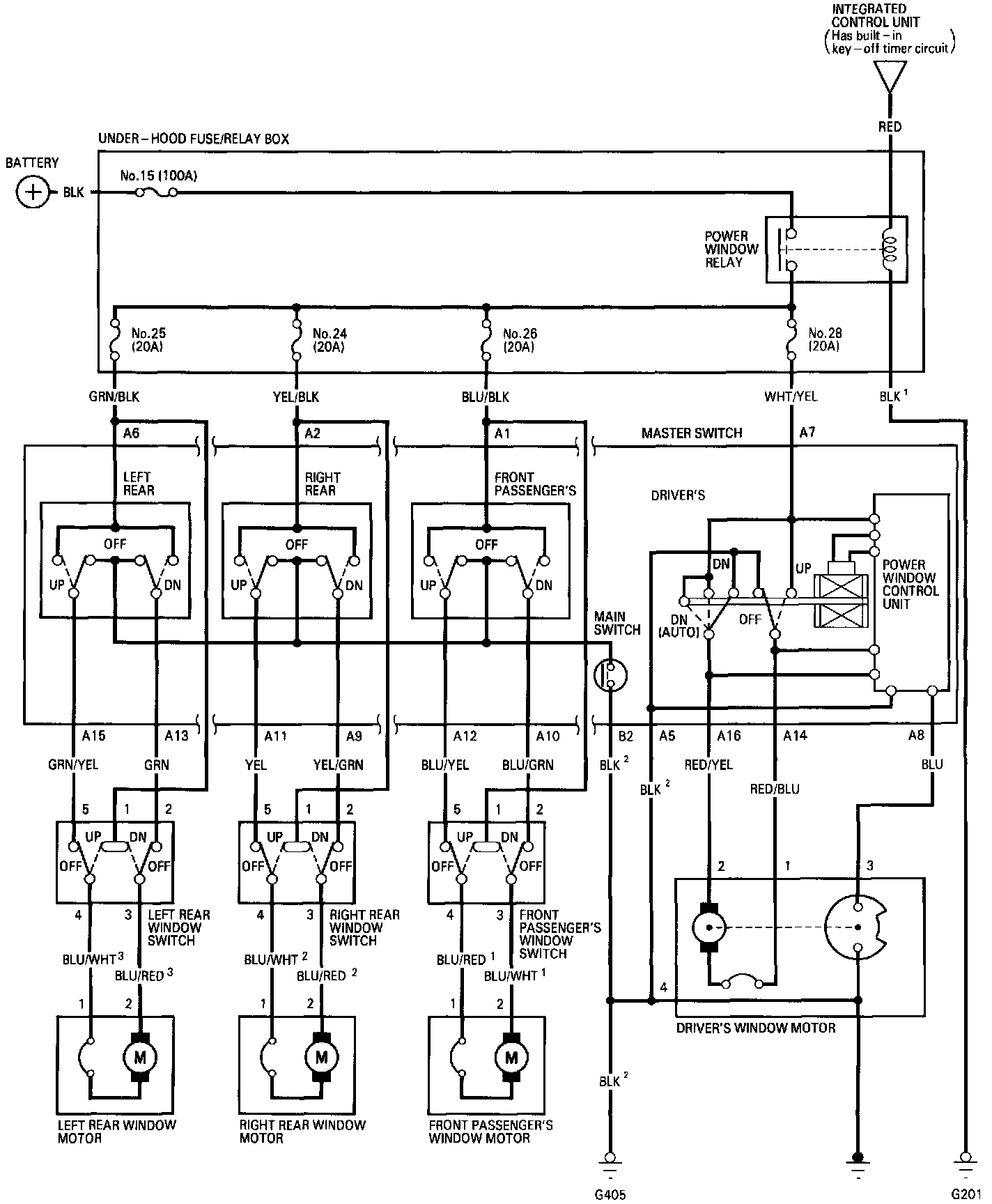

Circuit Diagram:
NOTE:
"ON"
in the switch circuit denotes DOWN.
