Power Locks: Testing and Inspection

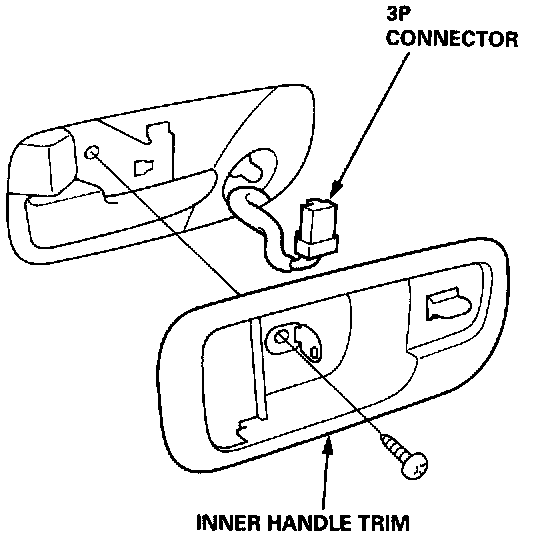

1. Remove the inner handle trim.

2. Disconnect the 3P connector from the door lock switch.

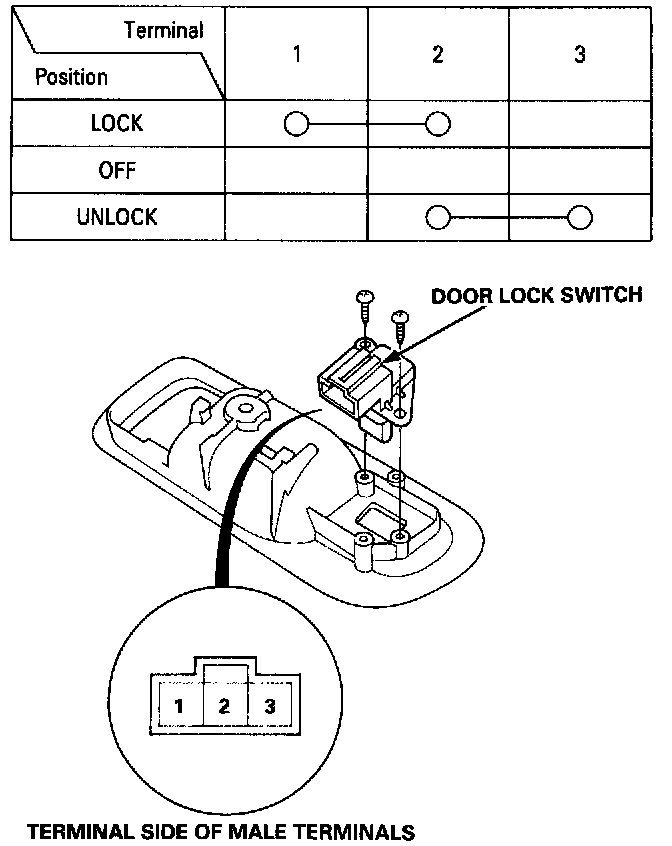

3. Check for continuity between the terminals in each switch position according to the table.
