General Module: Testing and Inspection
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRSsection before performing repairs or service.

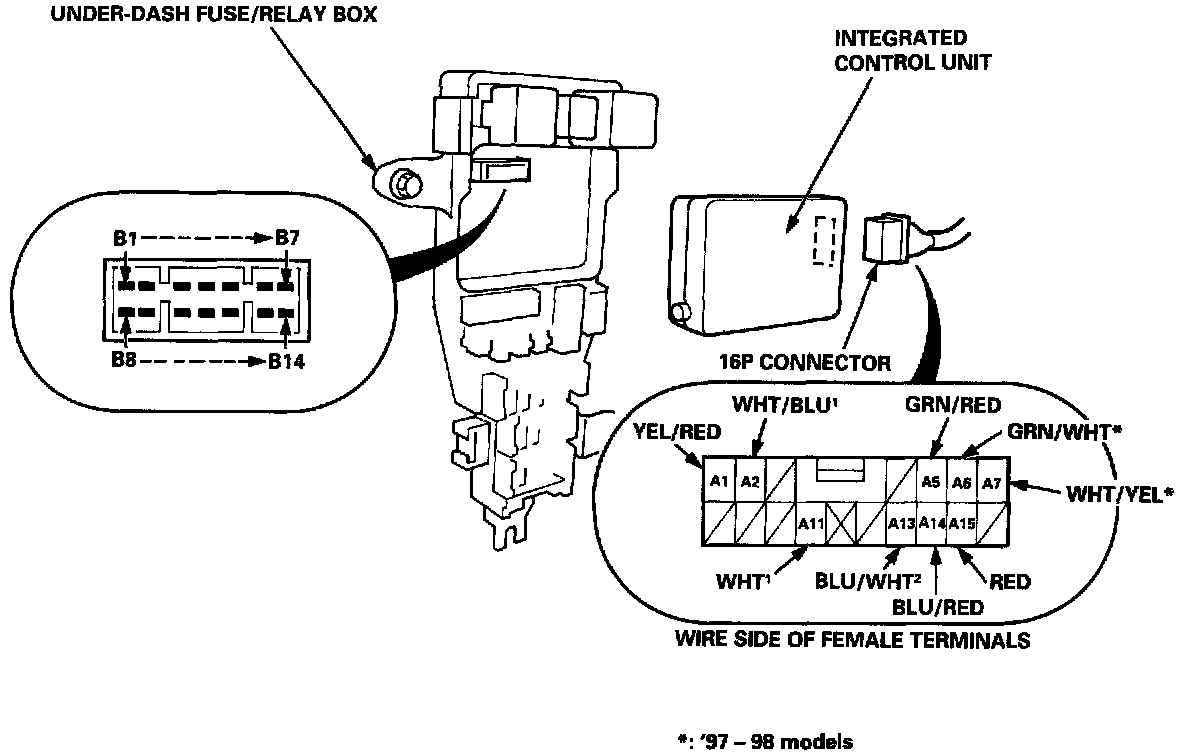

1. Remove the driver's side kick panel, then disconnect the 16P connector from the integrated control unit.
2. Remove the integrated control unit from the under-dash fuse/relay box.
Input Test:
3. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
^ If the terminals look OK, make the following input tests at the connector and socket.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.

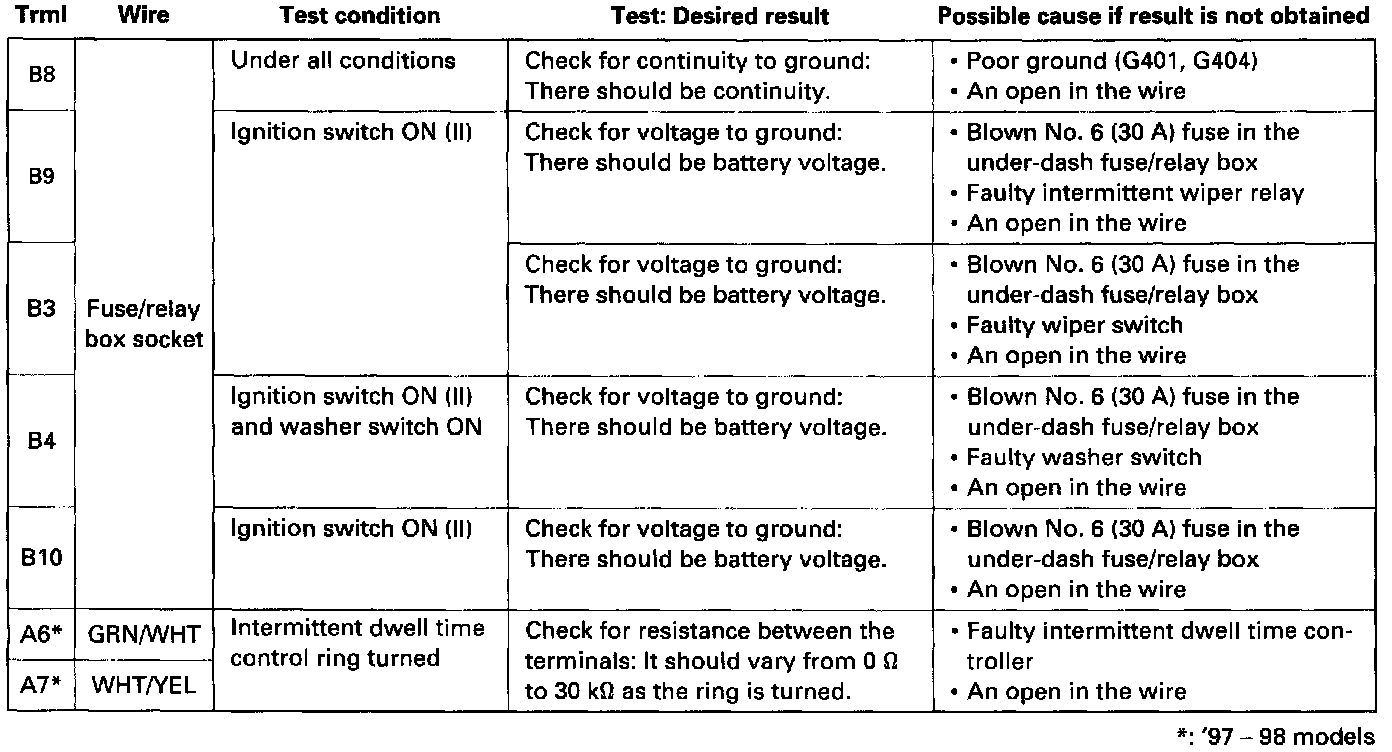

Intermittent Wiper System:
Intermittent Wiper System
Oil Pressure Indicator Flasher System:
Oil Pressure Indicator Flasher System
Integrated Control Unit Input Test:
Seat Belt Reminder And Key-in Warning System:
Seat Belt Reminder and Key-in Warning System
Integrated Control Unit Input Test:

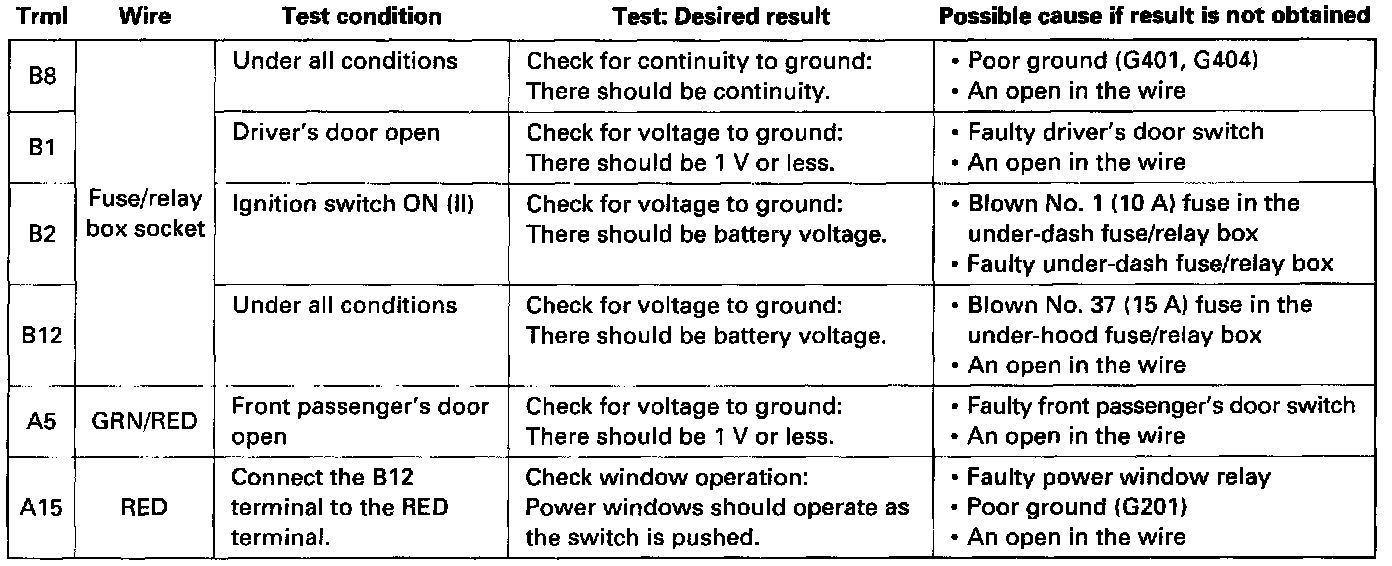

Power Window Key-off Timer System:
Power Window Key-Off Timer System
Integrated Control Unit Input Test:
Entry Light Timer System:
Entry Light Timer System
Integrated Control Unit Input Test:
Lights-on Reminder System:
Lights-On Reminder System
