Home
>>
Acura
>>
1998
>>
NSX V6-3.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>

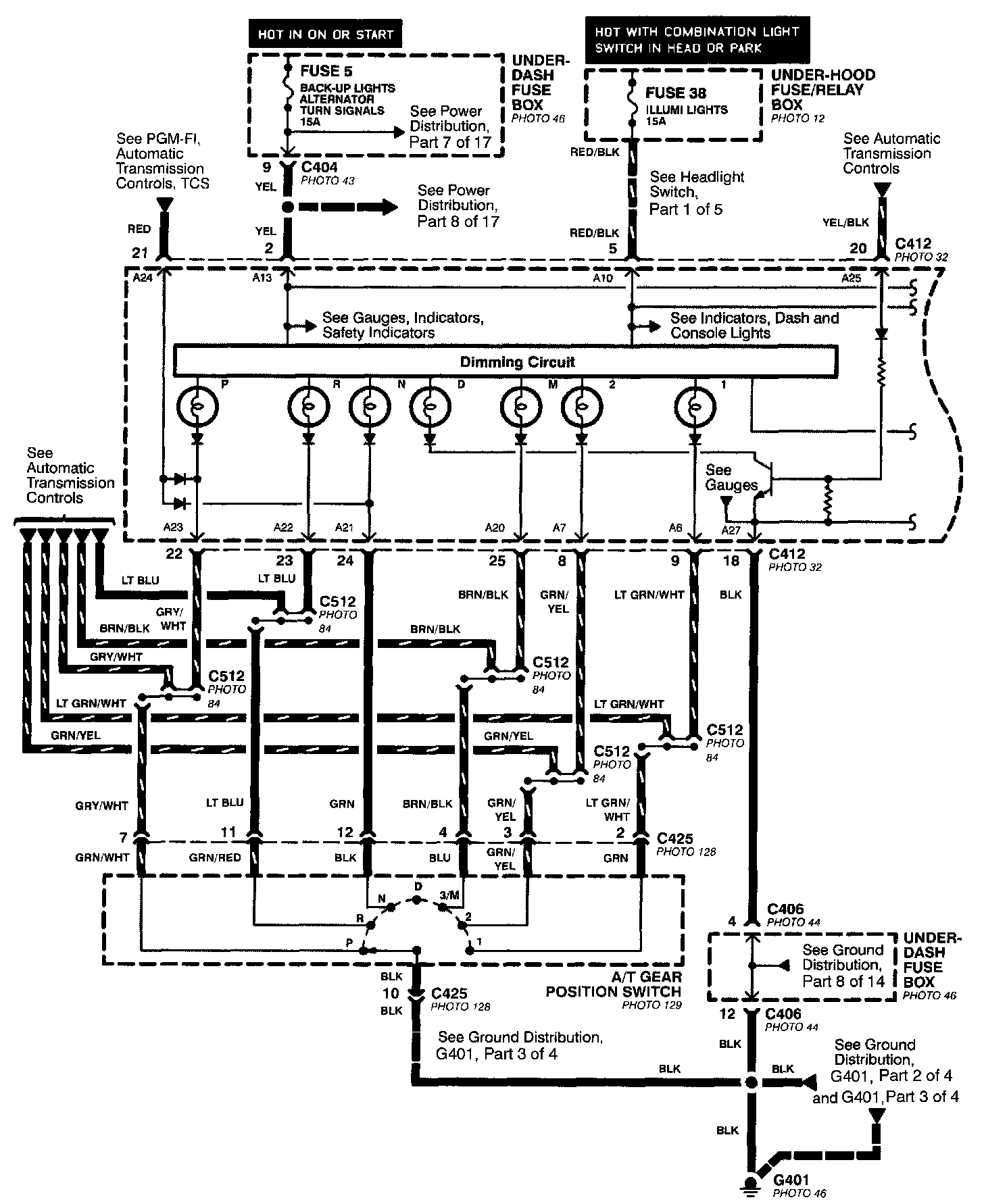

Electrical Diagrams
Electrical Diagrams
part 1 of 2:
part 2 of 2:
