Home >> Acura >> 1998 >> NSX V6-3.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Security Lamp/Indicator >> With Removable Roof

With Removable Roof

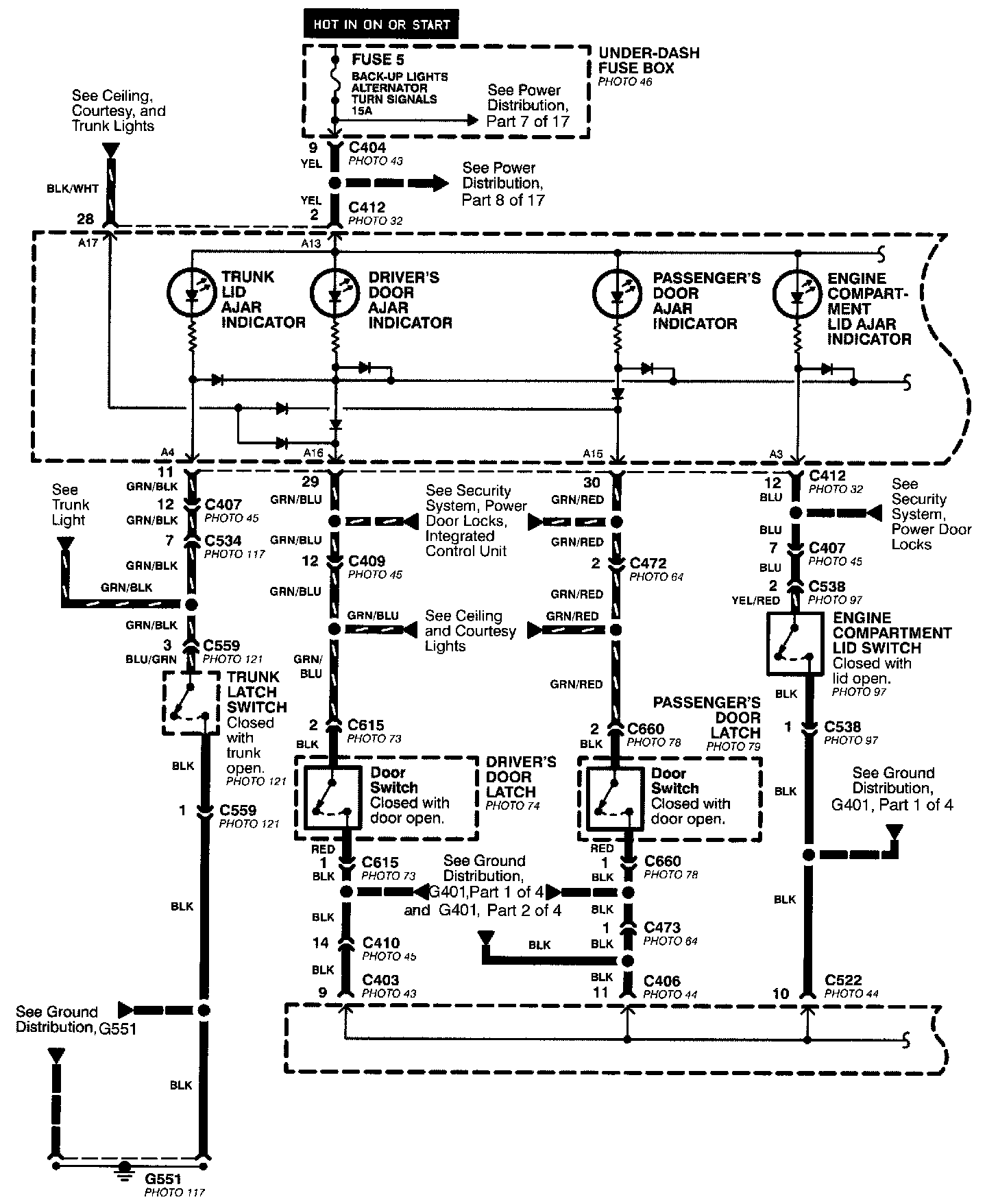

part 1 of 2:

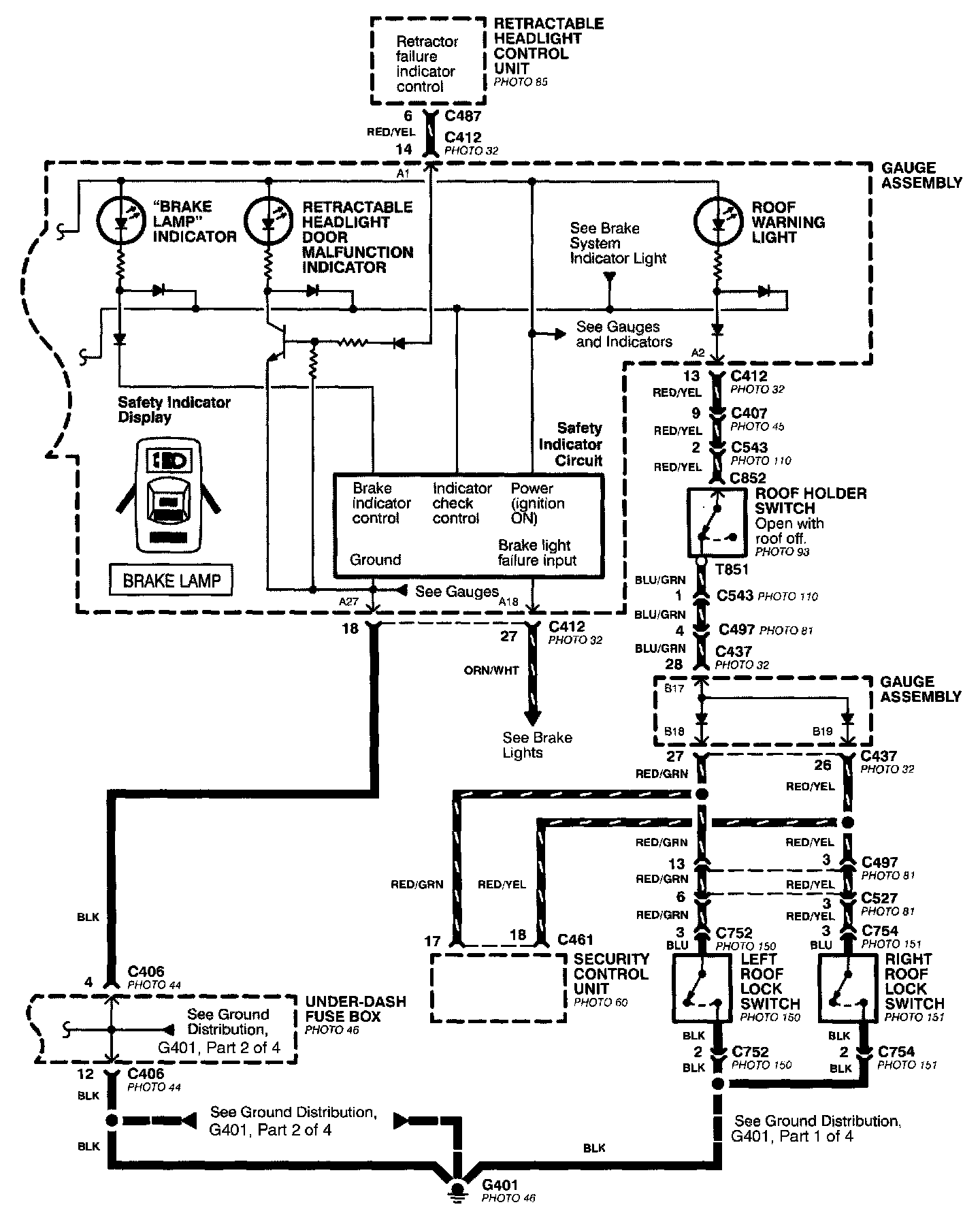

part 2 of 2:
