Brake Fluid Accumulator: Description and Operation

ACCUMULATOR

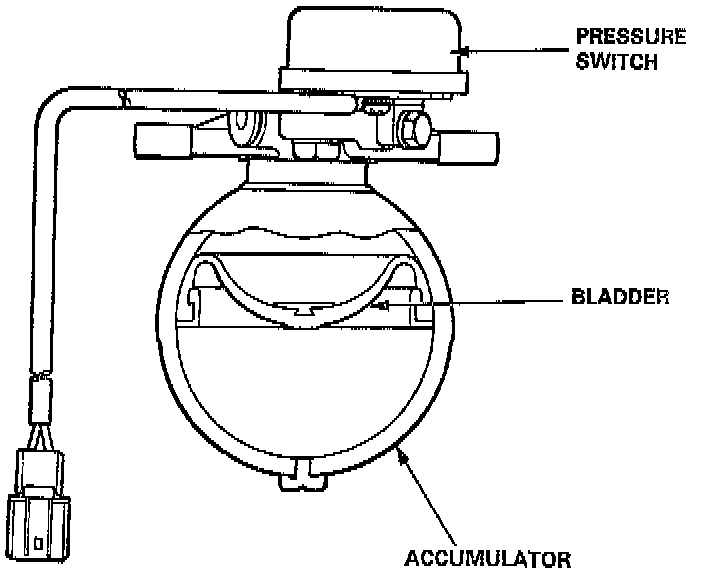

The accumulator is a pneumatic type which accumulates high-pressure brake fluid fed from the pump incorporated in the power unit. When the anti-lock brake system operates, the accumulator feeds high-pressure brake fluid to the modulator valve via the inlet side of the solenoid valve.
