Driver's Window Motor Test

Motor Test:
1. Remove the driver's door panel, and disconnect all connectors.

Driver's Window Motor Test:

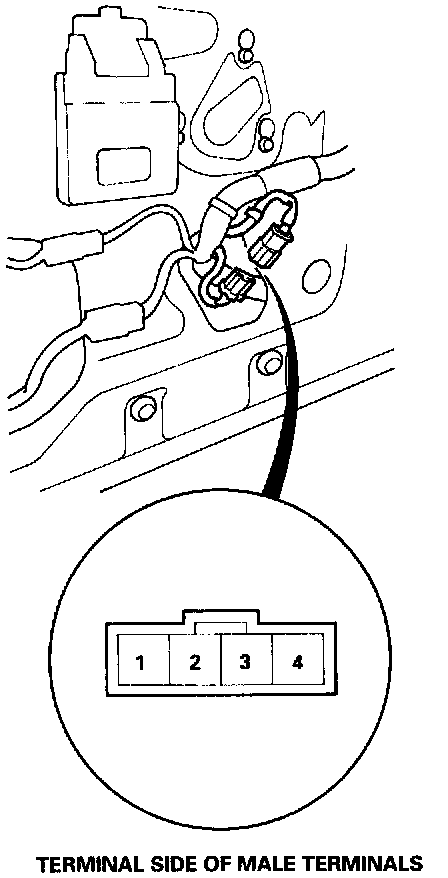

2. Disconnect the 4P connector from the window motor.




3. Test the motor in each direction by connecting battery power and ground according to the table.

CAUTION: When the motor stops running, disconnect one lead immediately.

4. If the motor does not run or fails to run smoothly, replace it.

Pulser Test:

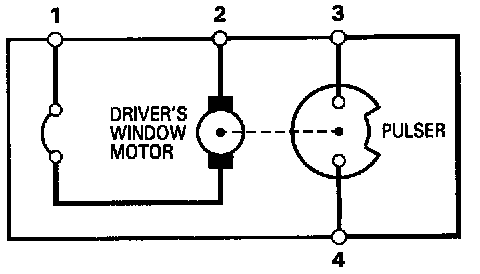

5. Connect the test leads of an analog ohmmeter to the No. 3 and No. 4 terminals.

Driver's Window Motor Test:

6. Run the motor by connecting power and ground to the No. 1 and No. 2 terminals. The ohmmeter needle should move back and forth alternately.
