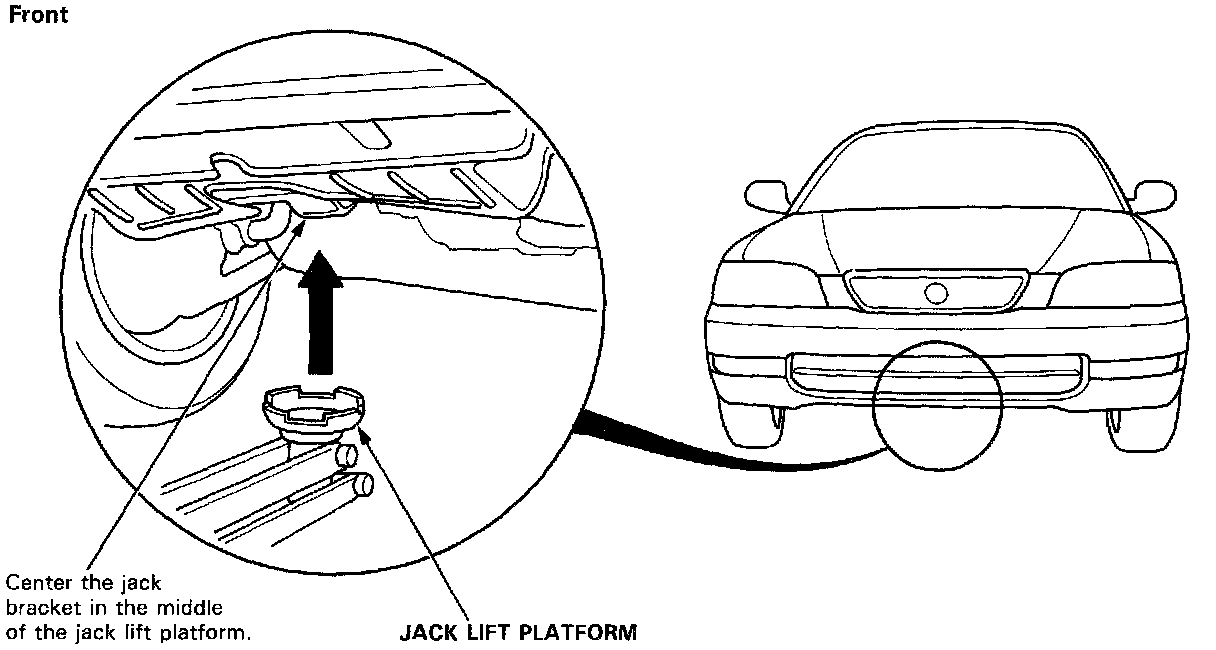

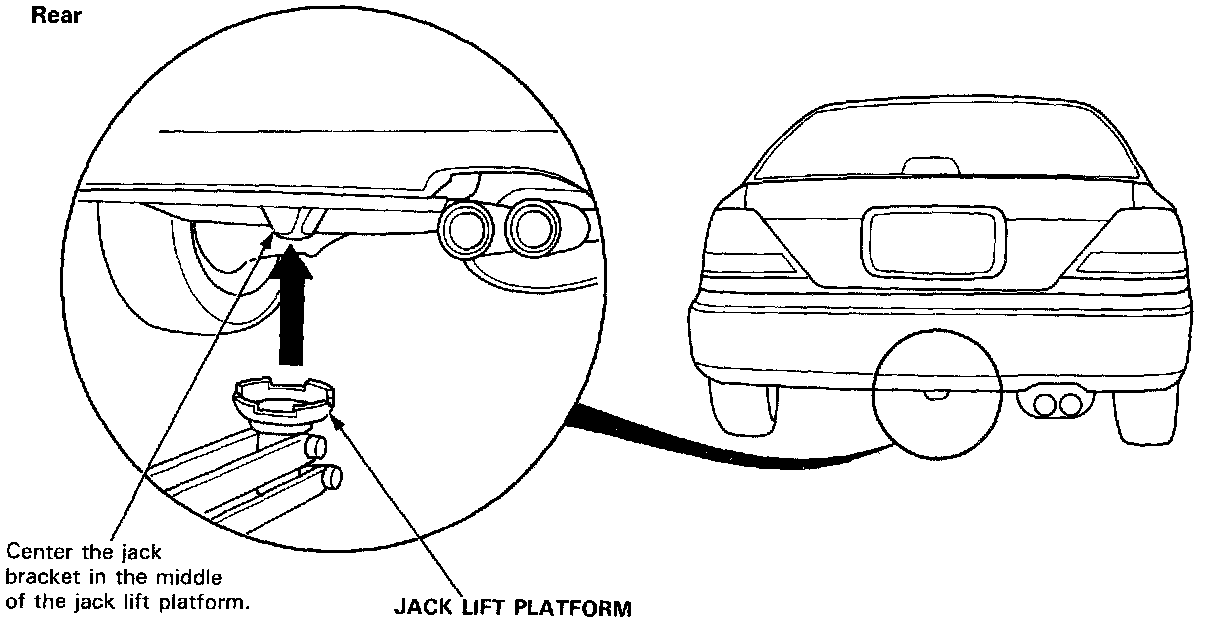

Floor Jack Lift Points








1. Set the parking brake, and block the wheels that are not being lifted.
2. When lifting the rear of the vehicle, put the shift lever in (P) position.
3. Raise the vehicle high enough to insert the safety stands.
4. Adjust and place the safety stands so the vehicle will be approximately level, then lower the vehicle onto them.

WARNING
- Always use safety stands when working on or under any vehicle that is supported by only a jack.
- Never attempt to use a bumper jack for lifting or supporting the vehicle.
