Transmission Housing Removal

Removal

NOTE:
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
- Blow out all passages.
- When removing the transmission housing, replace the following:
- O-rings
- Transmission housing gasket

1. Remove the mainshaft and countershaft speed sensors from the transmission housing.
2. Remove the 16 bolts securing the transmission housing with the transmission hanger, harness clamp bracket, and speed sensor connector bracket.

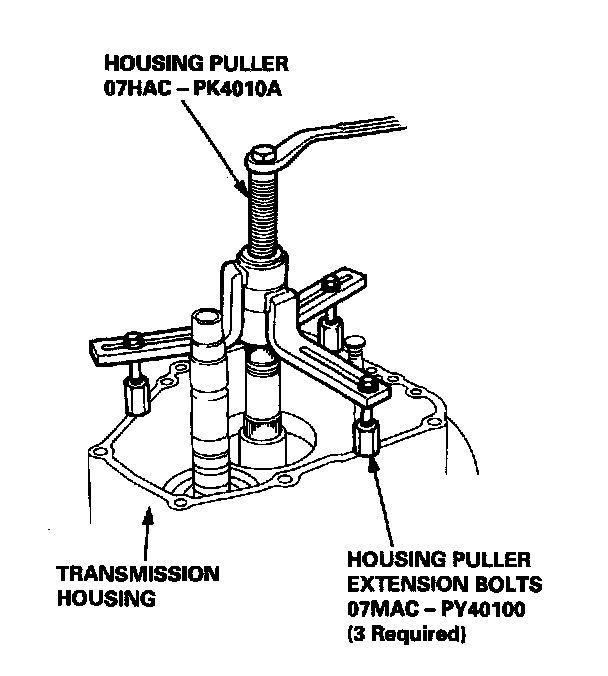

3. Install the special tools on the transmission housing, then remove the housing as shown.

CAUTION: Make sure you remove the mainshaft and countershaft speed sensors before removing the transmission housing from the torque converter housing.

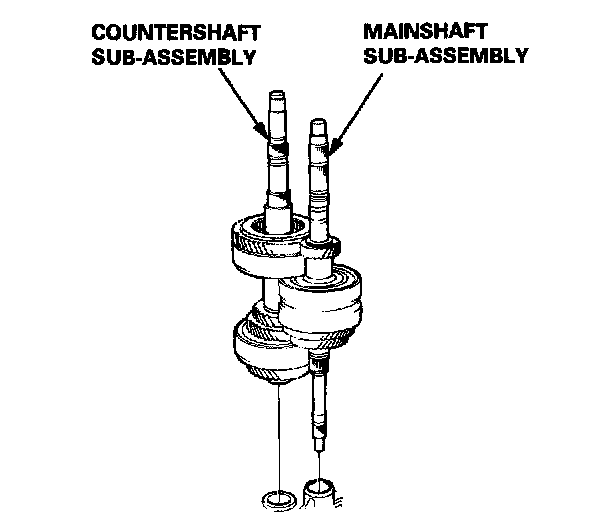

4. Remove the mainshaft sub-assembly and counter shaft sub-assembly together.

NOTE: Remove the shafts carefully to avoid damaging the regulator valve body.

5. Remove the secondary driven gear shaft assembly.
