Tilt Wheel Motor: Testing and Inspection

Tilt/Extend-Retract Motor Test (DPMS)

1. Remove the steering column covers.

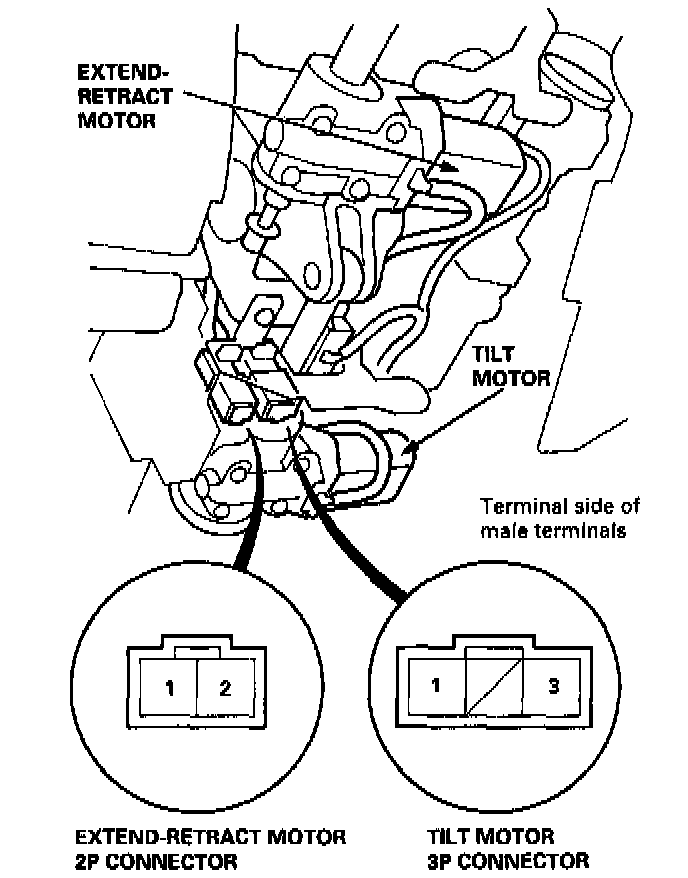

2. Disconnect the connector from each motor.

Tilt Motor:

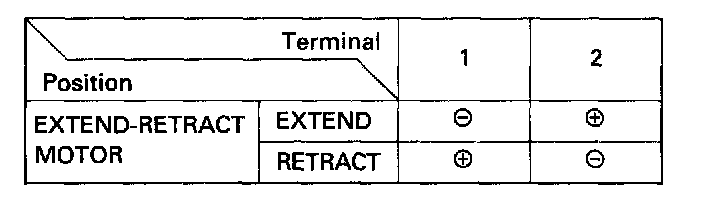

Extend - Retract Motor:

3. Test the motors according to the table.


CAUTION: When a motor stops running, disconnect battery power immediately.
