Home
>>
Acura
>>
1996
>>
RL V6-3474cc 3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Main Wire Harness
>>
Part 2 of 4
Part 2 of 4

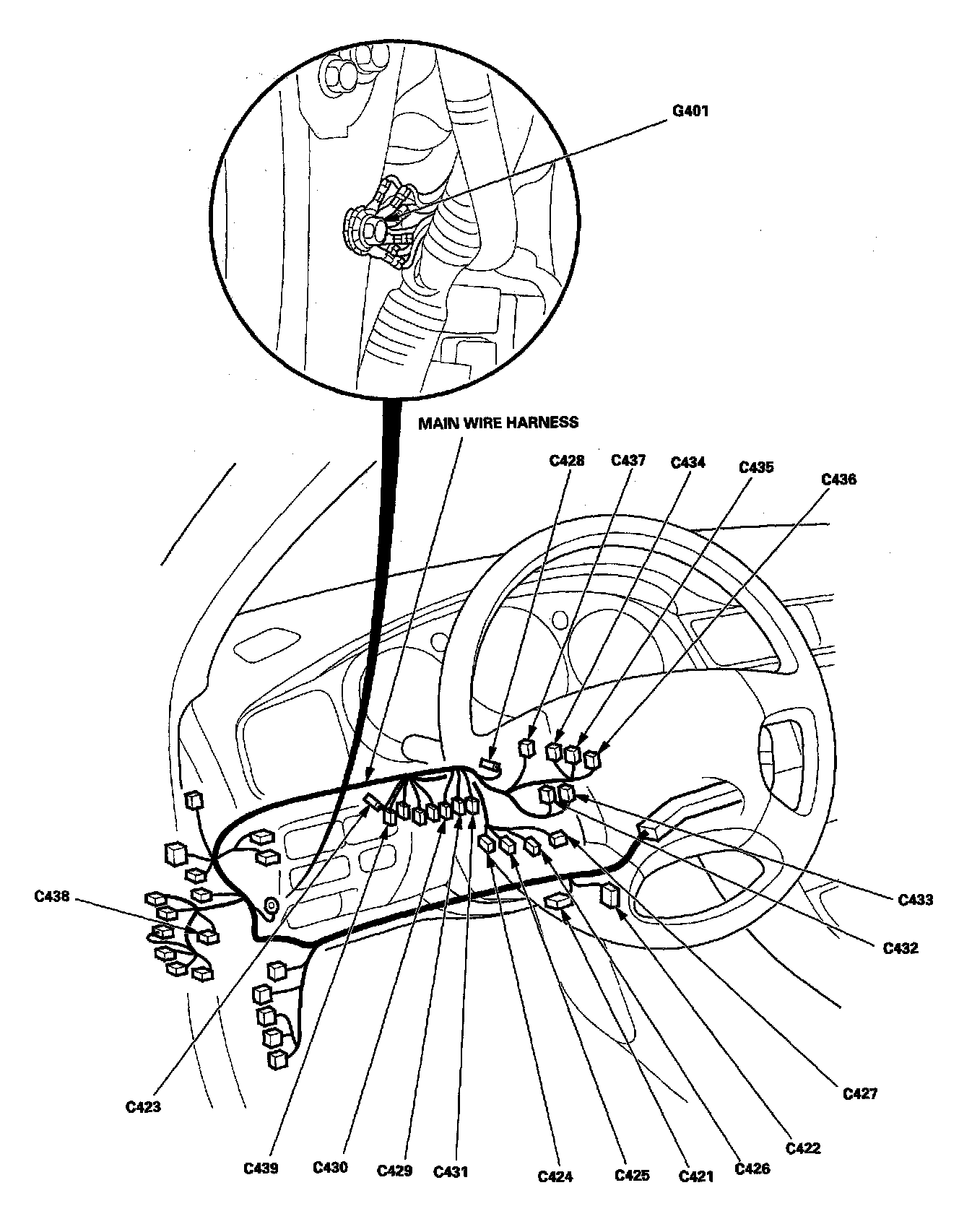

Harness Location View:

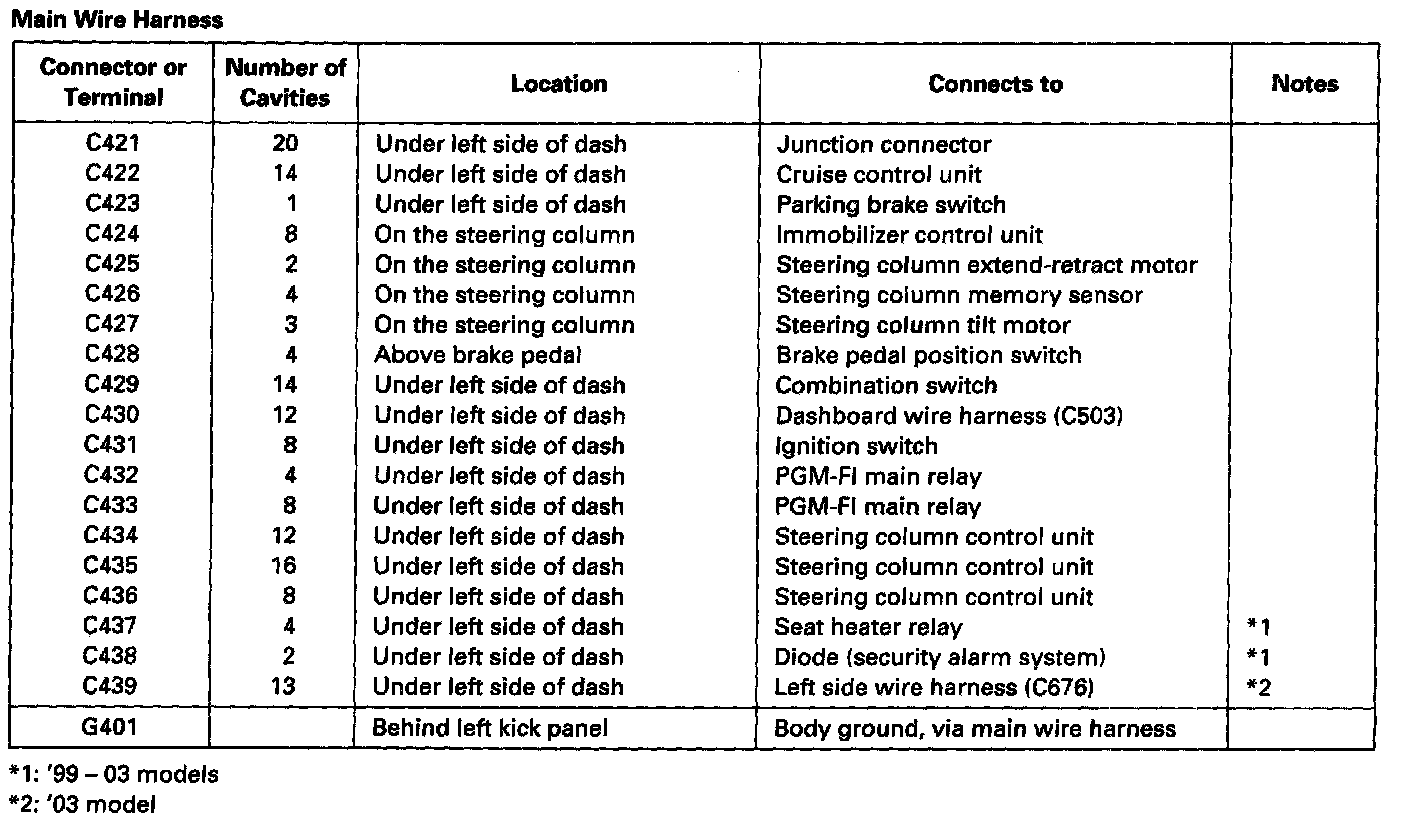

Main Wire Harness:
