Harmonic Balancer - Crankshaft Pulley: Service and Repair

Replacement

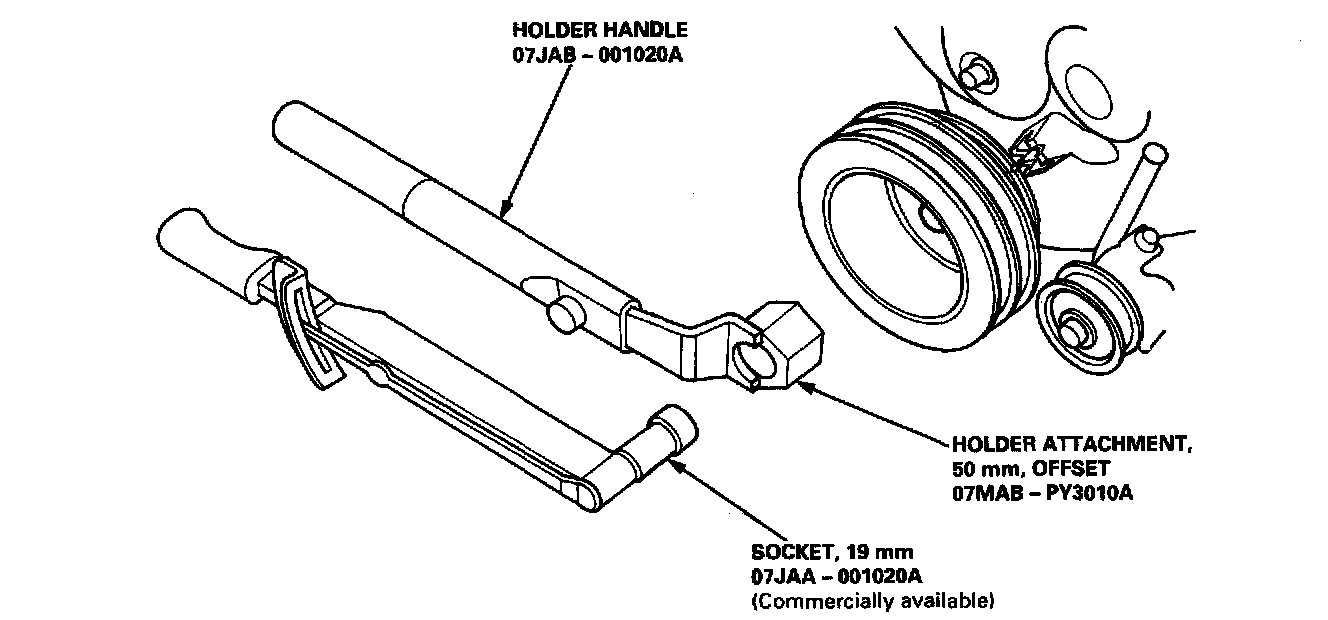

When installing and tightening the pulley, follow the procedure:

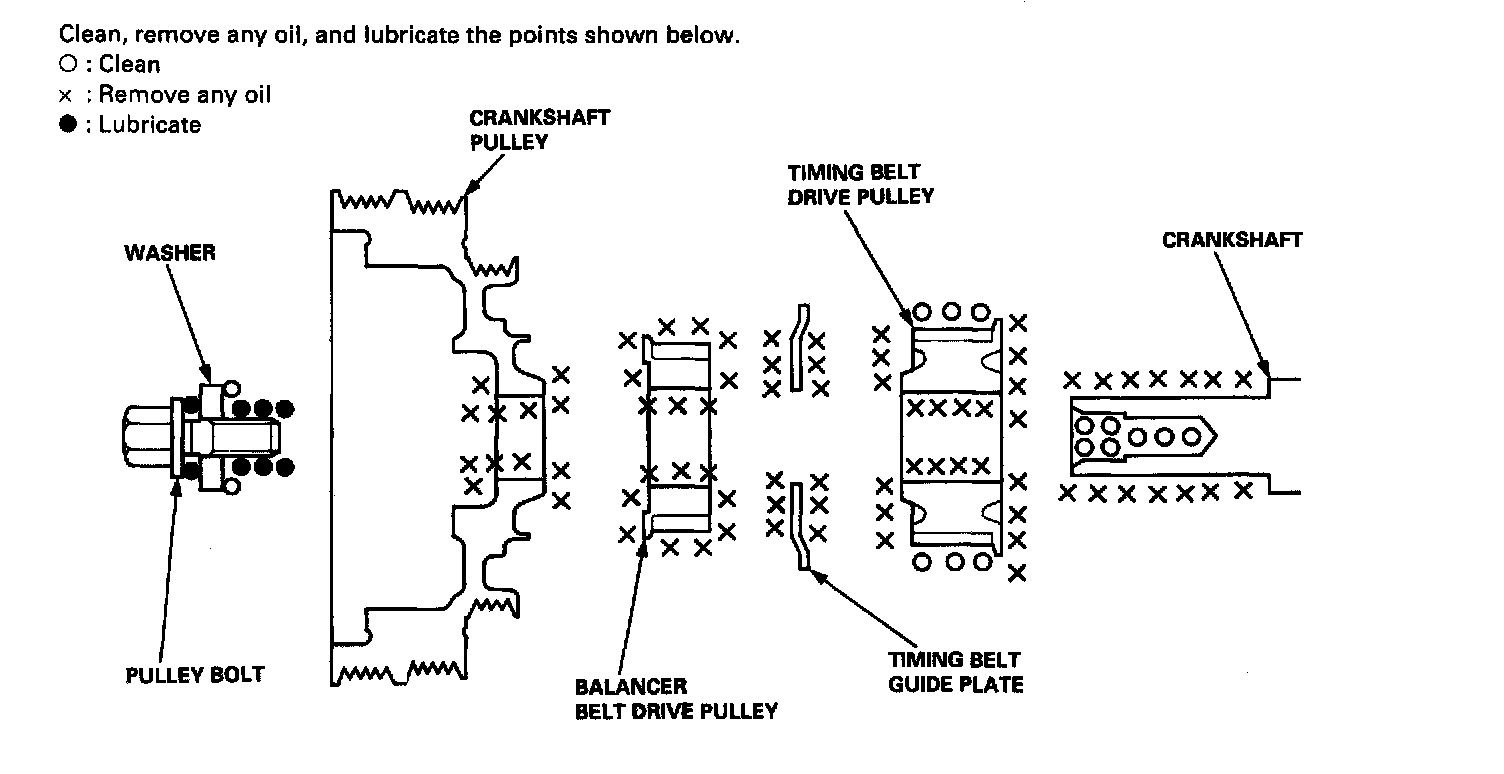

Clean, remove any oil, and lubricate the points.





Crankshaft pulley bolt size and torque value:
16 x 1.5 mm
245 Nm (25.0 kgf-m, 181 ft. lbs.)

NOTE: Do not use and impact wrench when installing.
